Description:
This listing includes: 1 unit of weather station (433MHz)
Features:
1) Rainfall data (inches or millimeters): 1 hour, 24-hour, and total
2) Wind chill (°F or °C)
3) Records min. and max. wind chill
4) Wind speed (mph, m/s, km/h, knots, Beaufort)
5) Wind direction
6) Weather alarm modes
7) Dew point (°F or °C)
8) Records min. and max. dew point with time and date stamp
9) Outdoor and indoor humidity (%RH)
10) Records min. and max. humidity
11) Outdoor and indoor temperature (°F or °C)
12) Records min. and max. temperature
13) Time and date with manual setting
14) 12 or 24-hour time display
15) Perpetual calendar
16) Time zone setting
17) Time alarm
18) LED backlight
19) Wall hanging or free standing
20) Synchronized instant reception

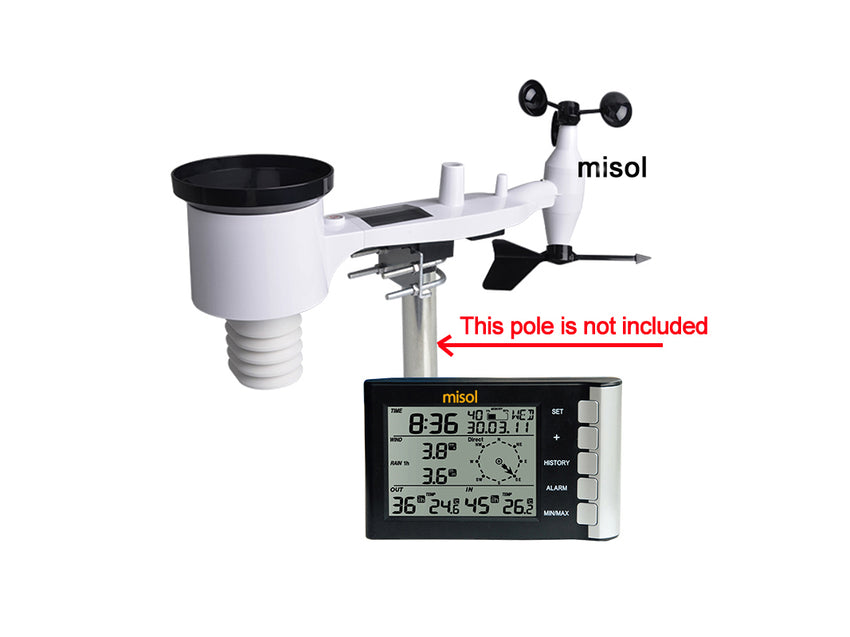

Package includes:
1) main unit (display unit)
2) Outdoor unit

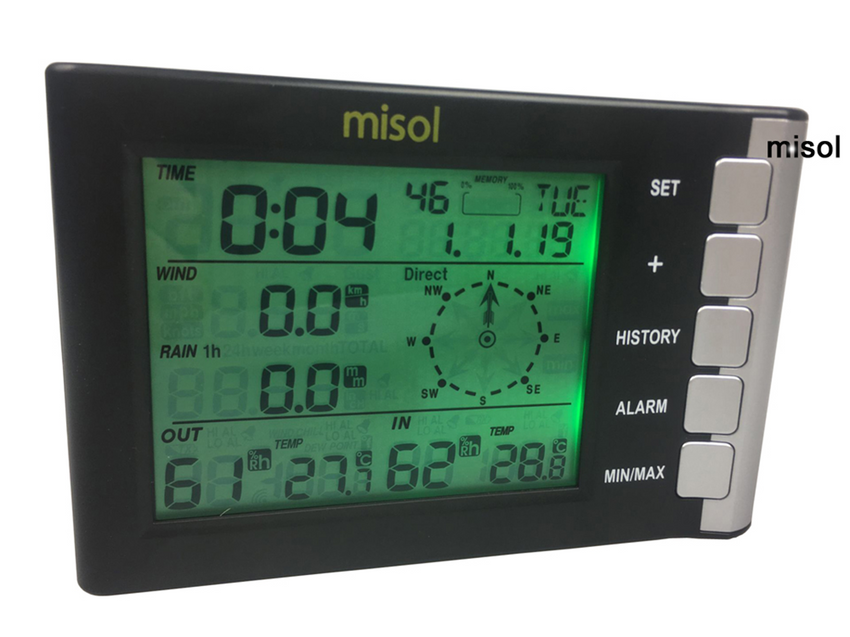

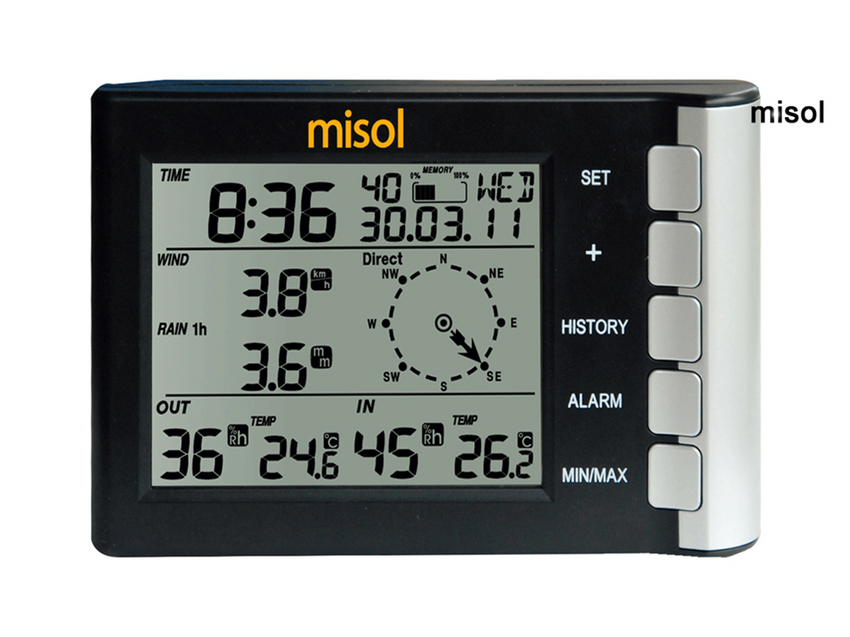

LCD Display
The following illustration shows the full segments of the LCD for description purpose only and will not appear like this during normal operation and use.

1. Time alarm on icon
2. Date of the week/time zone
3. Date
4. Wind direction alarm
5. General Max record
6. Wind direction
7. General Min. record
8. Rainfall high alarm
9. Indoor temperature high alarm and low alarm
10. Temperature unit
11. Indoor temperature
12. Indoor humidity high alarm and low alarm
13. Indoor humidity

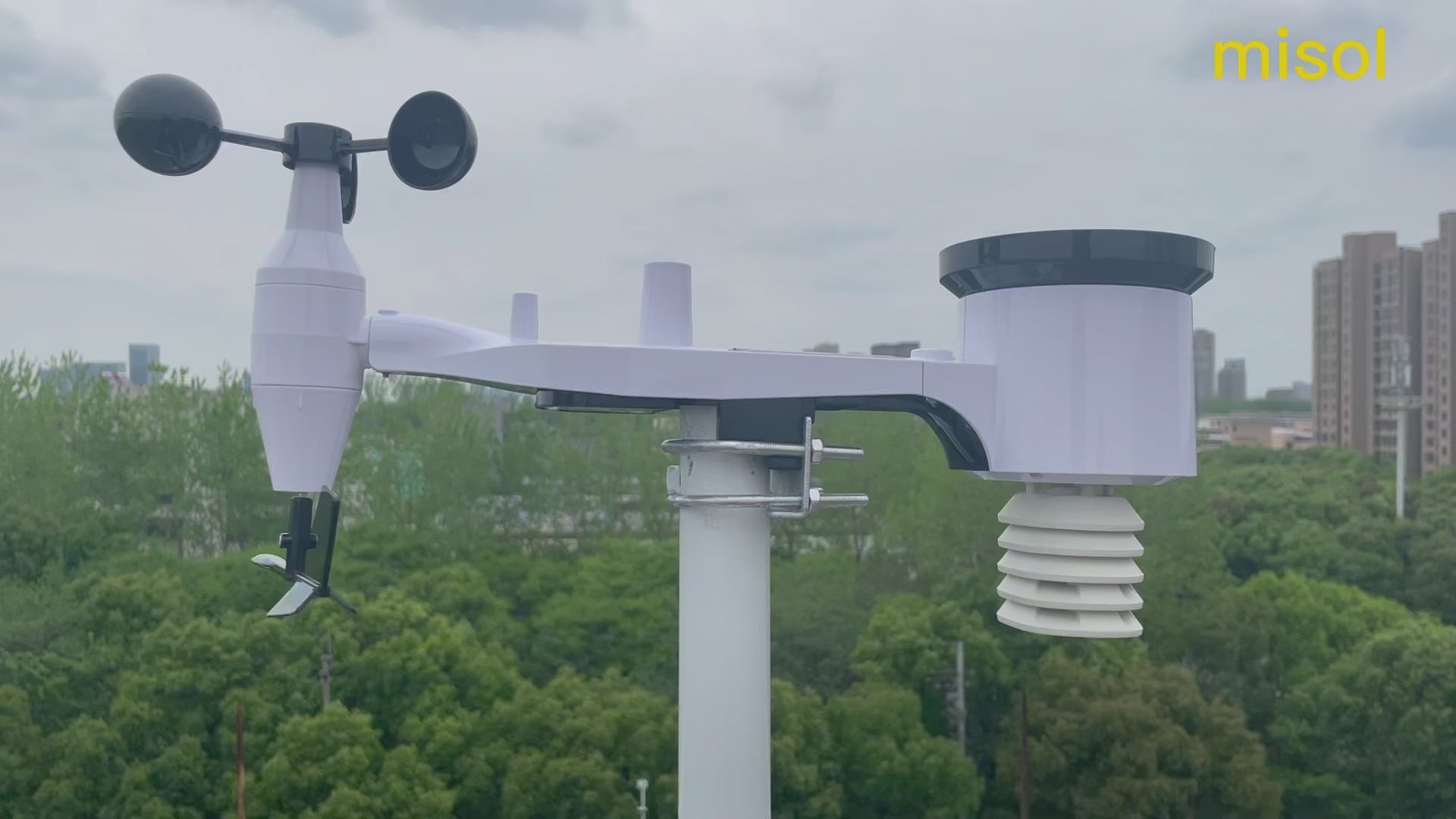

1. Wind Speed Sensor
2. Wind Vane
3. Thermo-hygro sensor
4. Rain collector
5. Bubble level
7.Antenna
8. U-Bolt
9. Battery compartment
10. Reset button
11. LED Indicator: light on for 4s if the unit power up. Then the LED will
flash once every 48 seconds (the sensor transmission update period).
Specifications
Outdoor data
Transmission distance in open field : 100m(300 feet) (there’s no obstacle in between)
Frequency : 433MHz
Temperature range : -40˚C--60˚C (-40℉ to +140℉)
Accuracy : + / - 1 °C
Resolution : 0.1˚C
Measuring range rel. humidity : 10%~99%
Accuracy : +/- 5%
Rain volume display : 0 – 9999mm (show --- if outside range)
Accuracy : + / - 10%
Resolution : 0.3mm (if rain volume < 1000mm)
1mm (if rain volume > 1000mm)
Wind speed : 0-180km/h (0~110mph) (show --- if outside range)
Accuracy : +/- 1m/s (wind speed< 10m/s)
+/-10% (wind speed > 10m/s)
Measuring interval thermo-hygro sensor: 48 sec
Water proof level : IPX3
Indoor data
Measuring interval temperature/humidity : 30 sec
Indoor temperature range : 0˚C--50˚C (32℉ to + 122℉) (show --- if outside range)
Resolution : 0.1˚C
Measuring range rel. humidity : 10%~99%
Resolution : 1%
Alarm duration : 120 sec
Power consumption
Base station : 3XAA 1.5V batteries (not included)
Remote sensor : 2xAA 1.5V batteries (not included)
|
14. Rainfall unit
15. Outdoor temperature high alarm and low alarm
16. Outdoor temperature
17. Outdoor reception signal
18. Outdoor Humidity
19. Outdoor transmitter low battery indicator
20. Outdoor humidity high alarm and low alarm
21. Rainfall
22. Rainfall 1h,24h, week, month or total display
23. Wind speed
24. Wind speed unit
25. Wind speed high alarm
26. Time
|
