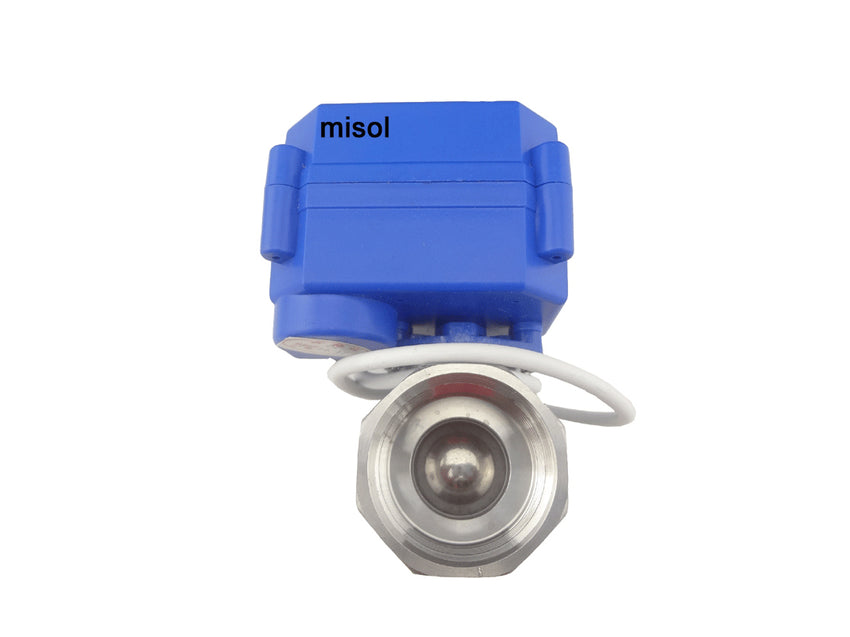

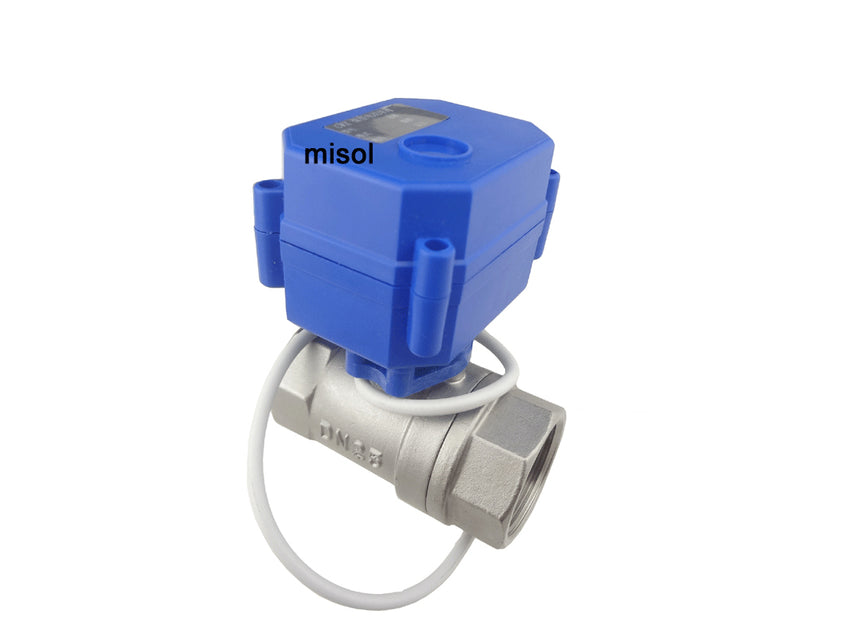

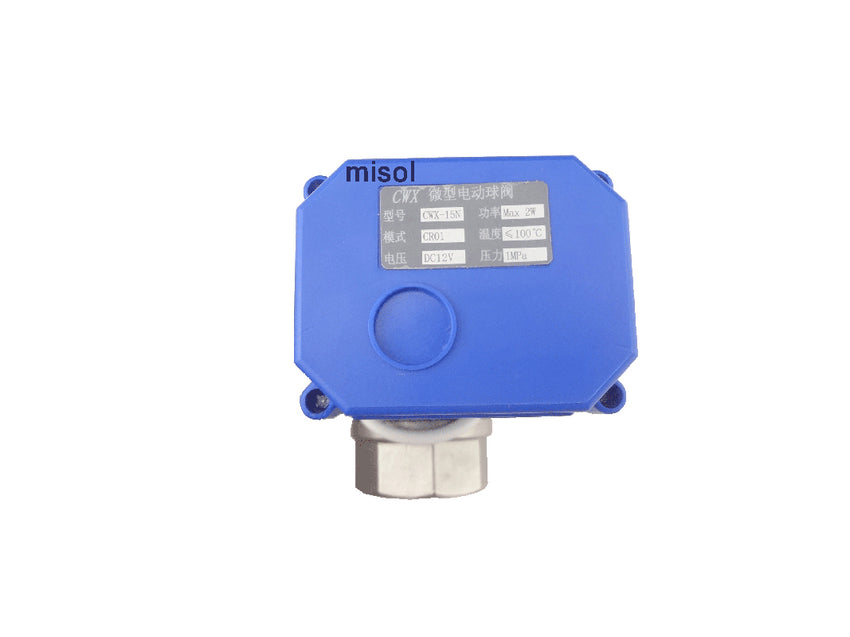

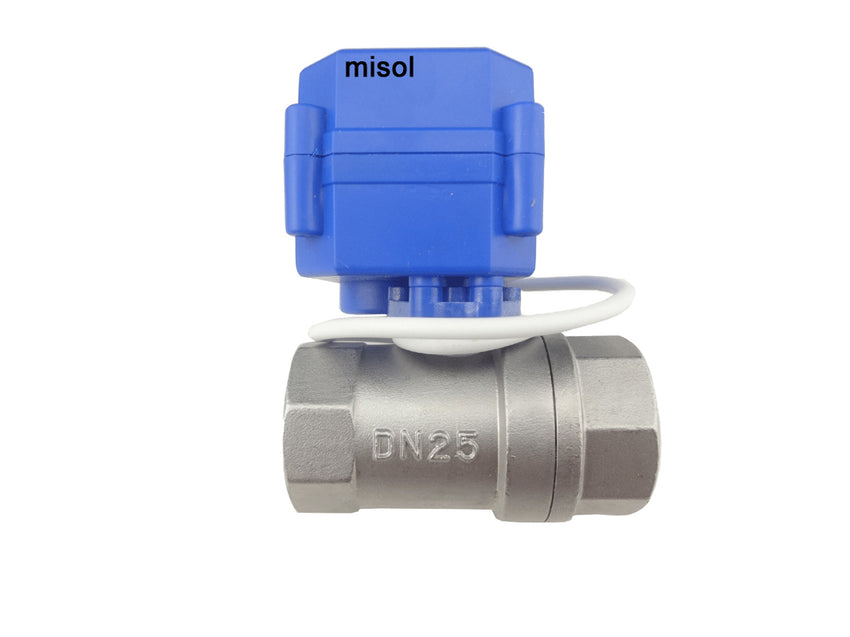

motorized valve G1” DN25 (reduce port) 2 way 12VDC CR01, stainless steel, electrical valve

Application:

1.HVAC
2.Water treatment
3.Chemical process
4.Small equipment for automatic control
5.Replacing solenoid valve, particularly when solenoid cannot work reliably

Features:

1).Smart shape, Perform reliably, large output torque, as long as 50000-100000 times.

multi-angle, assembling convenience for all kinds of requirements.

2).Float ball design, no leak, most suitable for heavy dirt and long time no action.

3).The conditions that solenoid valve can not be worked.

4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type)

5). High protection class, can be worked in moist conditions.

Technical Parameter:

*Wire type: CR01

CR01 wiring Diagram (two wires)

1. Connecting SW and OPEN, the valve opens, getting the position, automatically power off, the valve remain fully open position.

2. Connecting SW and CLOSE, the valve close, getting the position, automatically power off, the valve remains fully closed.
