Features:
- Configure WiFi via BLE
- New low energy Wi-Fi system can operate with normal AA batteries for 4 months
- Live Data on APP: Makes all sensor data available to WS View app on your local network
- WiFi capable: enable your station to publish its data wirelessly to web(Weather Underground/Weather Cloud/WOW) and view the current weather condition directly via WS View app.
- Global time synchronization while base station connected with the internet
-
Supports up to 8 outdoor temperature & humidity sensors (optional)
|
1.Wind direction
|
9. Rainfall
|
|
2. Wind speed
|
10. Barometric Pressure graphic
|
|
3. RF signal icon
|
11. Weather forecast
|
|
4. 8Channel Indoor/Outdoor Thermo-Hygrometer recycle icon (optional)
|
12. Date
|
|
5. Outdoor temperature
|
13. WIFI signal icon
|
|
6. Outdoor humidity
|
14. Time
|
|
7. Indoor humidity
|
15. Daylight Savings Time (DST)
|
|
8. Indoor temperature
|
|
Functions:
· Calendar
· Indoor/Outdoor temperature and humidity
· Wind speed, gust speed, and wind direction
· Absolute and Relative barometric pressure
· Rainfall rate and totals for one hour, one day, one week, one year
· Wind chill, dew point and heat index display
· Selectable display units for each sensor: C or F (temperature); mph, kph (wind speed); inHg, hPa or mmHg (pressure); in or mm (rainfall).
· Weather forecast based on barometer reading
· High/low alarm for indoor& outdoor temperature and humidity
|

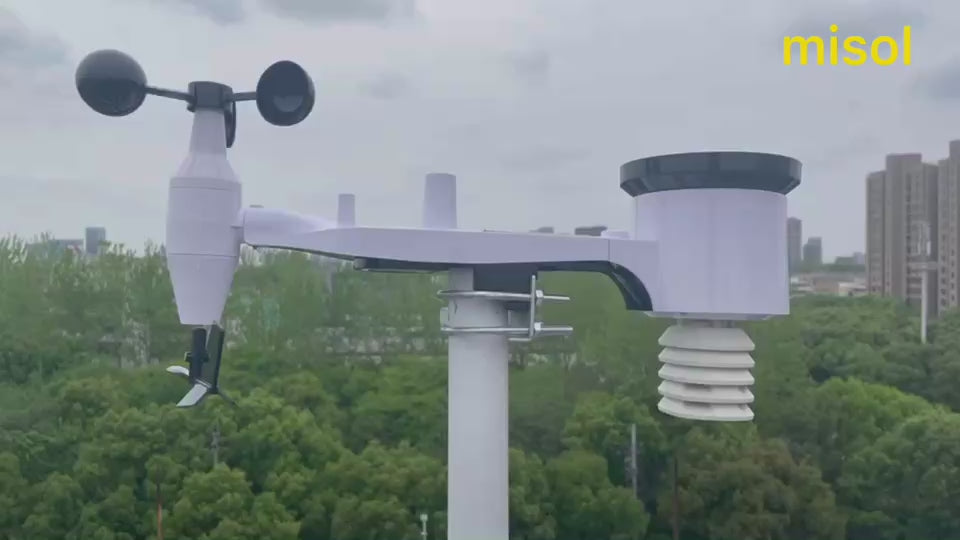

1 Wind speed cups
|
6 Antenna
|
|
2 Wind vane
|
7 U-Bolts
|
|
3 Thermo- and hygro-meter sensors
|
8 Battery compartment door
|
|
4 Rain collector
|
9 Reset button
|
|
5 Bubble level
|
10 LED (red) to indicate data transmission
|
Set includes:
1) Display Console
2) Outdoor Integrated sensor(Thermo-hygrometer / Rain Gauge / Wind Speed / Wind direction /Transmitter)
3) USB to 2.5*0.7mm DC 5V power plug connector cable
Specifications
Outdoor data
Transmission distance in open field : 100 meter
Frequency : 433MHz
Temperature range : -40˚C--60˚C (-40˚F to +140˚F)
Accuracy : + / - 1 °C
Resolution : 0.1˚C
Measuring range rel. humidity : 10%～99%
Accuracy : +/- 5%
Rain volume display : 0 – 9999mm
(show --- if out of range)
Accuracy : +/- 10%
Resolution : 0.1mm (if rain volume < 1000mm)
1mm (if rain volume > 1000mm)
Wind speed : 0-50m/s(0~100mph)
(show --- if outside range)
Accuracy : +/- 1m/s (wind speed< 5m/s)
+/-10% (wind speed > 5m/s)
Measuring interval thermo-hygro sensor : 16 s
Indoor data
Indoor temperature range : 0˚C--50˚C (32˚F to 122˚F)
(show --- if out of range)
Resolution : 0.1˚C
Measuring range rel. Humidity : 10%～99%
Resolution : 1%
Measuring range air pressure : 700-1100hPa (20.67-32.5inHg)
Accuracy : +/-3hpa
Resolution : 0.1hPa (0.01inHg)
Alarm duration : 120 sec
Measuring interval indoor data : 60s
Power consumption
-Base station : 5V DC (USB to 2.5*0.7mm DC 5V power plug connector cable included)
-Base station : 2 x AA batteries (not included)
-0utdoor sensor: 2x AA batteries (not included)
It supports the below sensors: (optional)
- WH51 soil moisture sensor (MAX. 8 )
- WH41 PM2.5 air quality sensor (1 unit)
- WH31 multi channel temperature and humidity sensor (MAX. 8 )
- WH57 Lightning sensor(1 unit)
- Water leak sensor (MAX. 8)
Remark: 8 units of WH31 multi channel temperature and humidity sensor recycle display on the console. But Other extra sensors data can not displayed on the console (pass through only) and sensor management and calibration can only be realized via WS VIEW app.
