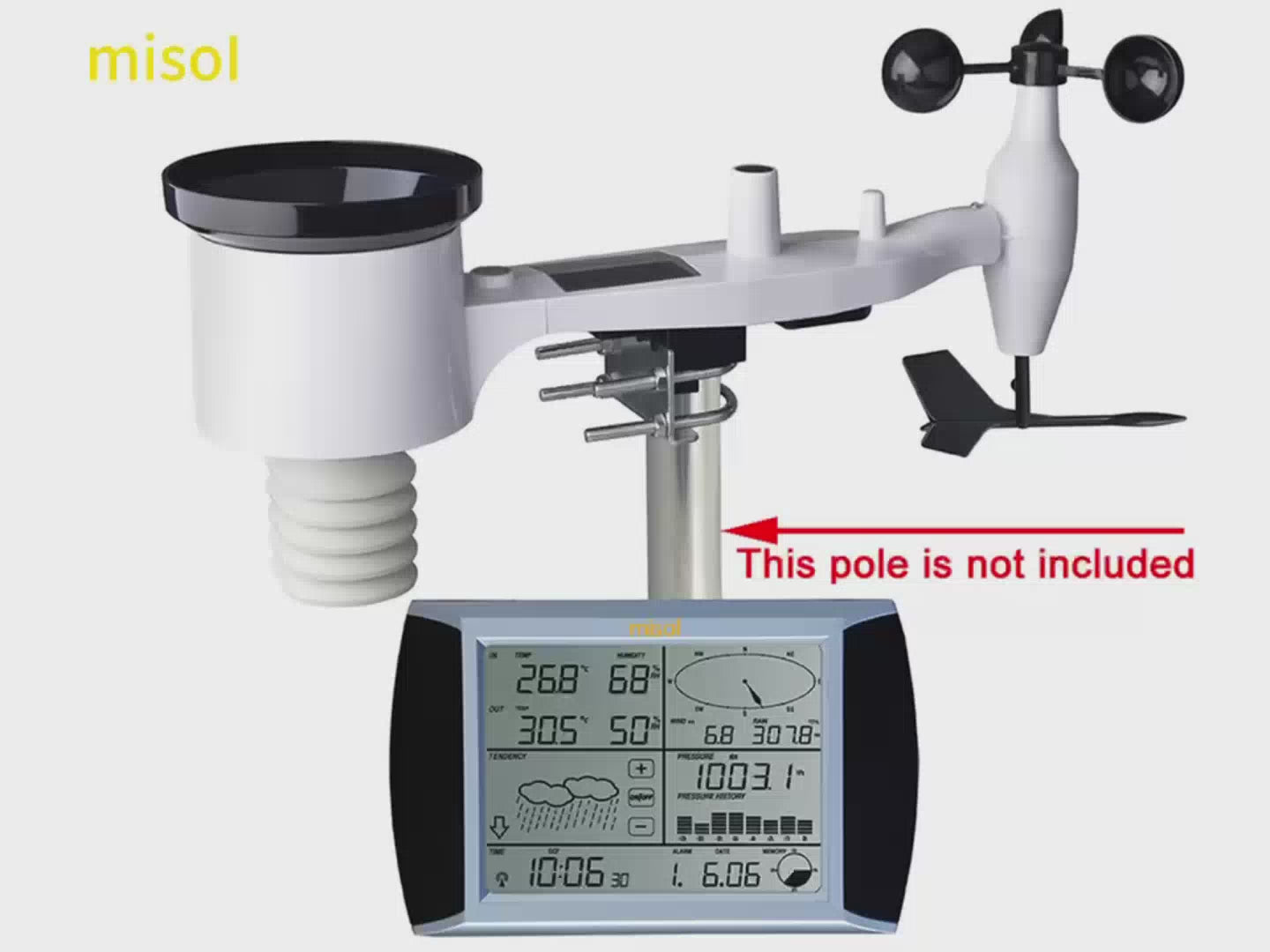

MISOL / professional weather station / PC connection wind speed wind direction rain meter pressure temperature humidity / with solar charge function(outdoor)

Description：

Product Features:

l  Touch screen panel

l  It can measures: Wind speed, wind direction, rain, temperature (outdoor & indoor), humidity (outdoor & indoor), atmosphere pressure.

l  It transmits data from the outdoor sensor array to the receiver wirelessly(433Mhz).

l  The device (indoor ) can be connected to PC by USB cable. In the software, PC can view the current information from the device, and export the history data into computer(format:csv)

l  The data can be uploaded to the website(www.wundergound.com) via PC, when the PC is connecting to the internet.

Functions:

 1) Free PC software to view the weather data, after PC connecting to the receiver(display).

 (remark: software language: Chinese, Czech, Danish, Deutsch, English, French, Hungarian, Polish, Svenska, Spanish)

2)  USB port for easy connection to your PC to view the weather data.

3)  History Record interval is: 1-240minutes(adjustable). The receiver can log 3552 records in total.

4)  Rainfall data (inch or mm): 1-hour, 24-hour, one week, one month and total since last reset.

5)  Wind chill and Dew point temperature display ( °F or  °C)

6)  Records min. and max. wind chill and Dew point with time and date stamp

7)  Wind speed (mph, m/s, km/h, knots, Beaufort)

8)  Wind direction display with LCD compass

9)  Weather forecast tendency arrow

10)  Weather alarm modes for: a) Temperature b) Humidity c) Wind chill d) Dew point e) Rainfall f) Wind speed g) Air pressure h) Storm warning

11)  Forecast icons based on changing barometric pressure

12)  Barometric pressure (inHg or hPa) with 0.1hPa resolution

13)  Wireless outdoor and indoor humidity (% RH)

14)  Records min. and max. humidity with time and date stamp

15)  Wireless outdoor and indoor temperature (°F or  °C)

16)  Records min. and max. temperature with time and date stamp
    17)  12 or 24-hour time display

18)  Perpetual calendar

19)  Time zone setting

20)  Time alarm

21)  High light LED backlight

22)  Wall hanging or free standing

Outdoor Sensor:

1. Wind Speed Sensor

2. Wind Vane

3. Thermo-hygro sensor

4. Rain collector

5. Bubble level

6. Solar panel

7. Antenna

8. U-Bolt

9. Battery compartment

10. Reset button

11. LED Indicator: light will turn on for 4s when the unit is powered up. Then the LED will flash once every 48 seconds (the sensor transmission update period).

PC Software:

History (in software):

Specification:

Outdoor data

Transmission distance: Max. 100meter (330 feet)

(tested in open field, no obstacle in between, no interference in between)

Transmission Frequency: 433 MHz

Temperature range: -40 to +60°C(-40 °F to +140°F)

Accuracy : +/- 1˚C, Resolution:0.1˚C

Humidity range:10%～99%

Accuracy : +/- 5%, Resolution: 1%

Rain volume: 0 - 9999 mm

Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > =1000mm)

Accuracy : +/- 6%

Wind speed: 0-50m/s (0~100mph)

Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed >=5m/s)

Wind direction: 0 to 359 degree

Measuring interval for outdoor sensor: 48 sec

Indoor data

Indoor temperature range:   0˚C--50˚C (32 °F to +122 °F)

Resolution :   0.1˚C

Accuracy :    +/-1˚C

Humidity:     10%～99%

Resolution:   1%

Accuracy :    +/- 5%

air pressure range:    300-1100hPa (8.85 -32.5inHg)

Accuracy        :    +/-3hpa

Resolution       :    0.1hPa (0.01inHg)

Measuring interval (indoor sensor): 48 sec

Alarm Duration: 120 seconds

 Power requires:

Base station(display):3 x AA 1.5V batteries(not included)

Outdoor sensor: 2X AA 1.5V batteries(not included),

Package included:
