Description:
Product Introduction:

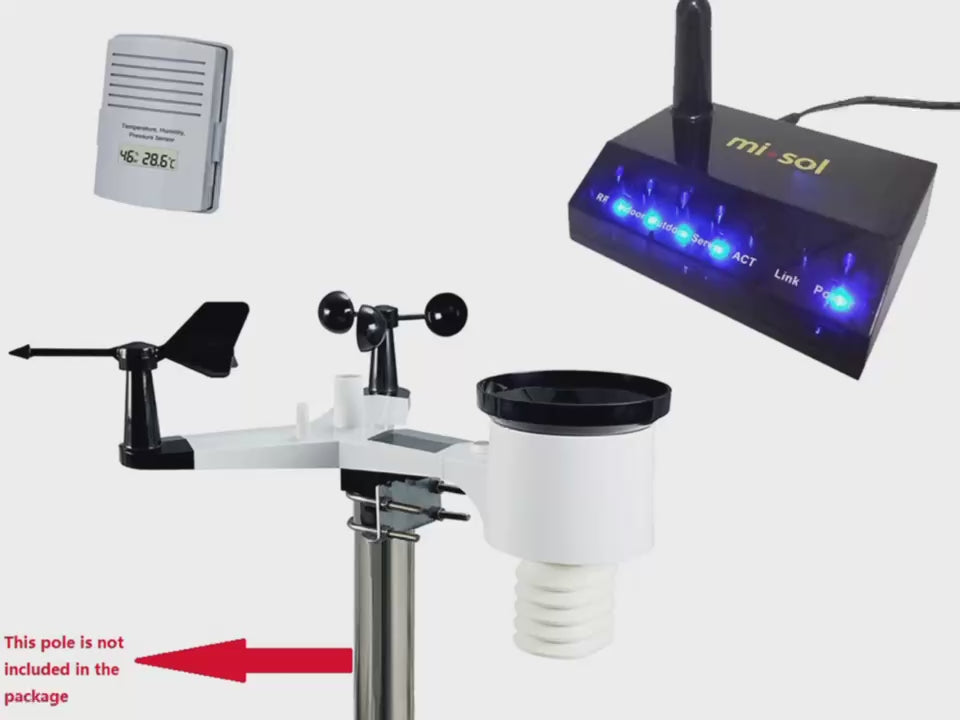

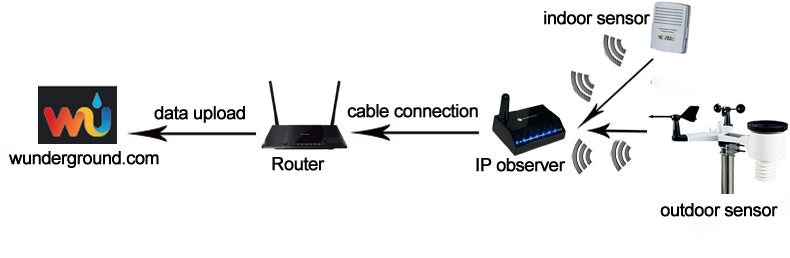

It transmits 433MHz from the outdoor sensor array and indoor temperature sensor to the Observer IP module(receiver module), which plugs directly into your router (connect by cable),
It can upload the data to the web:www.wunderground.com
The wireless all-in-one integrated sensor (outdoor sensor) measures wind speed, wind direction, temperature, humidity, wind speed, wind direction, rainfall, UV and solar radiation.
The indoor sensor measures barometric pressure, indoor temperature and indoor humidity.

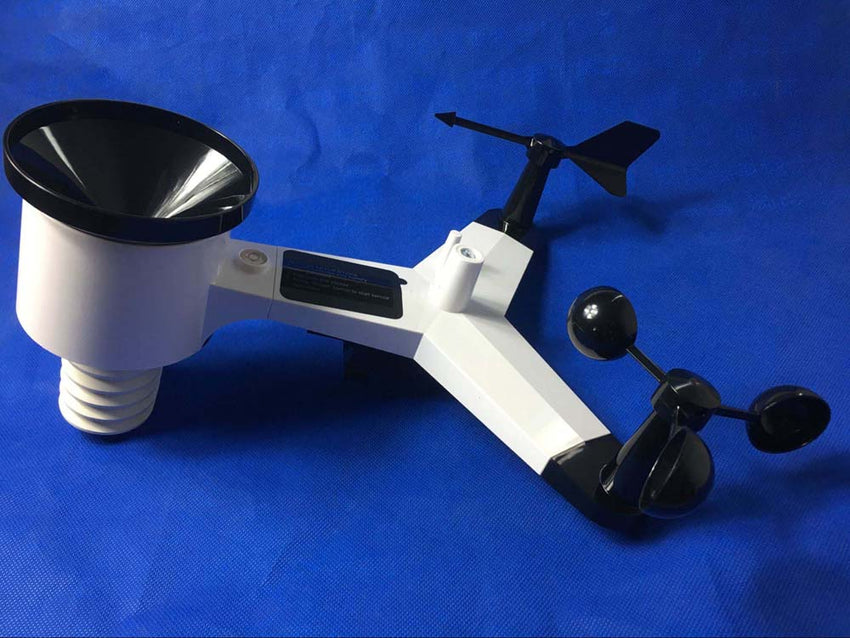

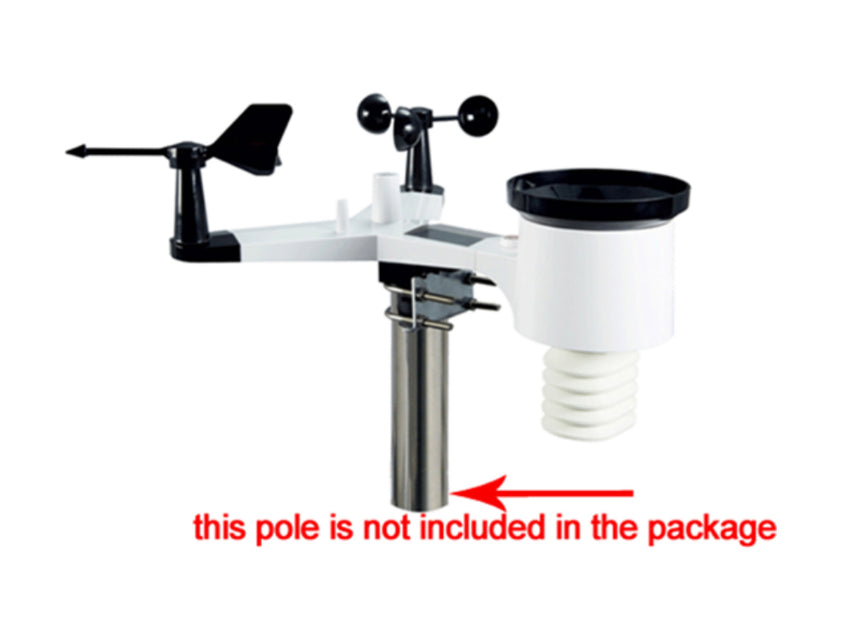

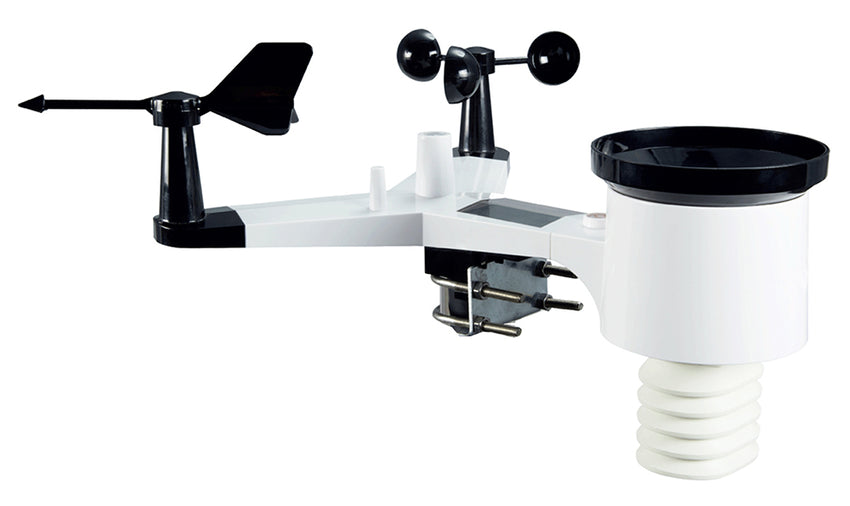

The all-in-one sensor array features a pagoda thermo-hygrometer radiation shield with passive aspiration for the upmost accuracy, a bubble level for plumb installation, and a solar panel to charge the internal super capacitor.

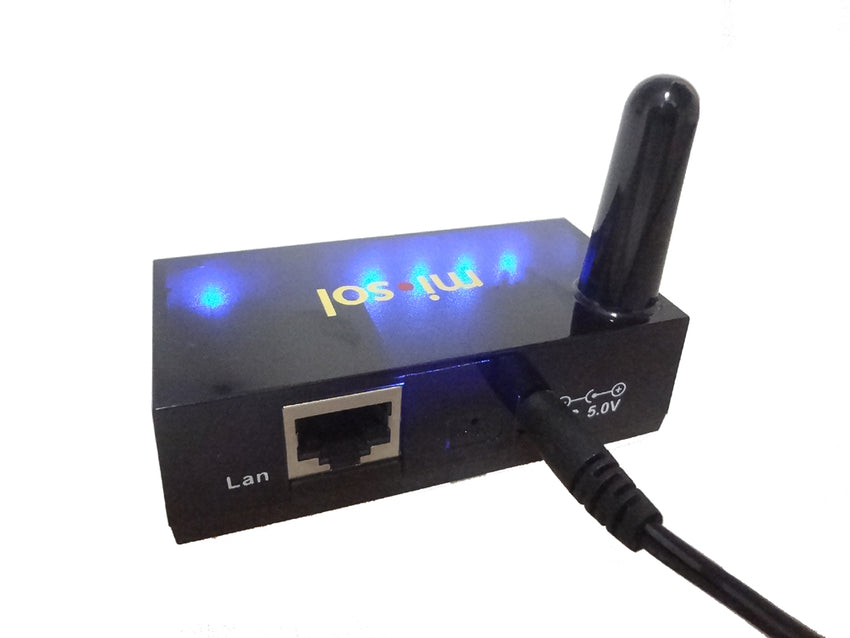

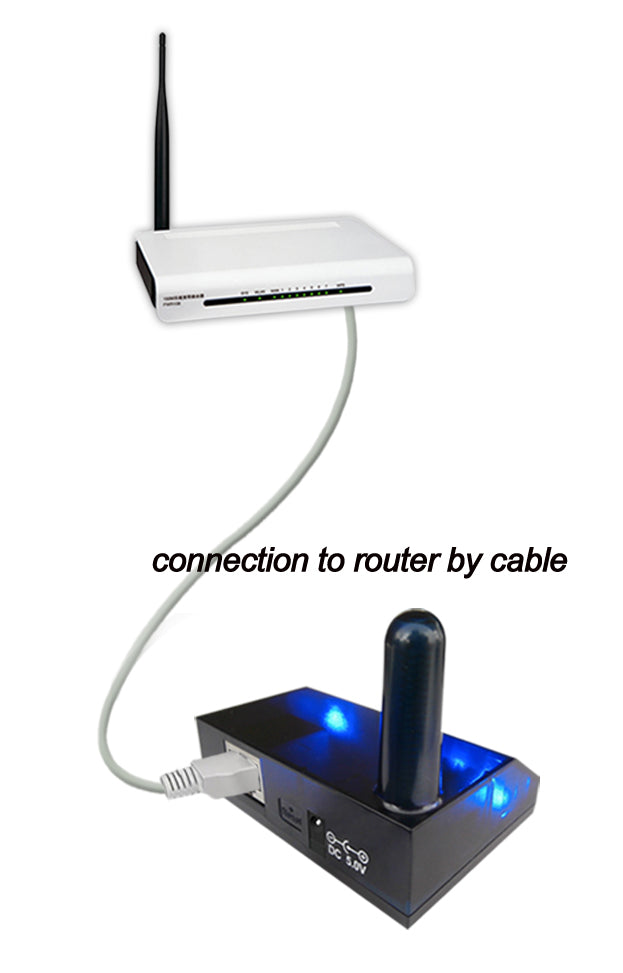

The IP Observer module (Data Receiver Module) receives data from the sensor array and connects to your router (by cable).
The IP Observer module (Data receiver module) is configured through the web browser.
Specifications:
1) Wireless Transmission specifications:
Line of sight wireless transmission (in open air): 100meter
Update Rate: Outdoor Sensor: 16 seconds, Indoor Sensor: 64 seconds
Frequency: 433 MHz
2). Measurement and Specification as below table:
3). Power Consumption
-
IP Observer (Receiver): 5V DC Adaptor (included in the package)
-
Indoor Thermo-hygrometer-barometer sensor: 2xAAA batteries (Batteries not included due to battery is forbidden by air shipping)
-
Outdoor sensor array: 3 x AA 1.5V batteries(non-rechargeable ) (not included due to battery is forbidden by air shipping)
Remark: we recommend Lithium batteries for cold weather climates, but alkaline batteries are sufficient for most climates.

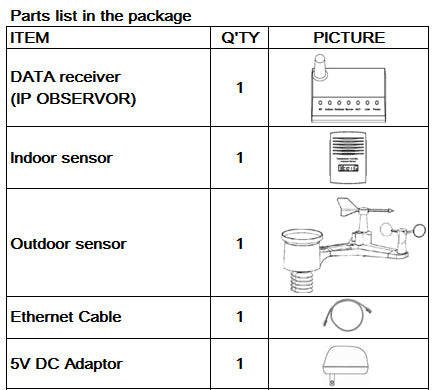

4). Parts list in the package, as below table:
