Main Features：

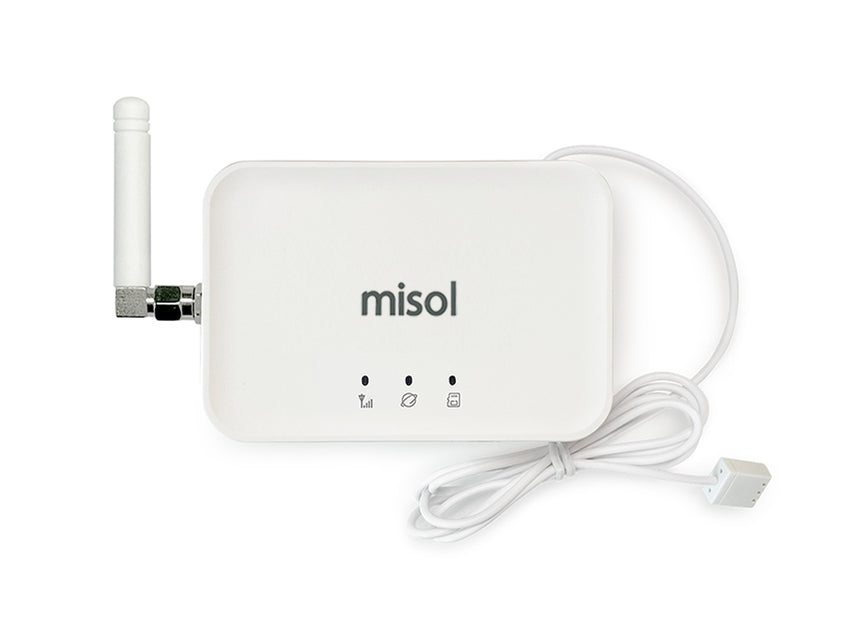

· · The gateway has built-in indoor temperature and humidity sensors and a barometric sensor to monitor indoor conditions in real-time.

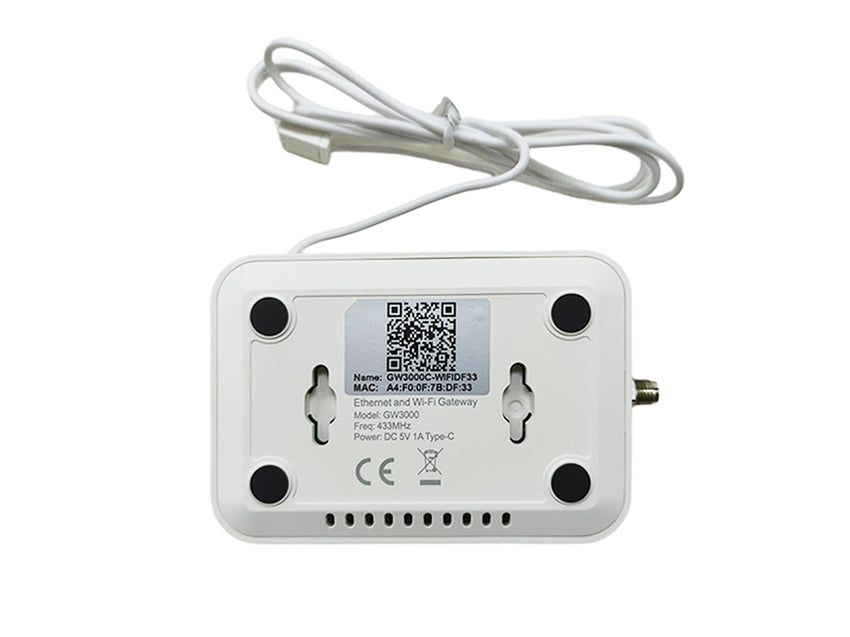

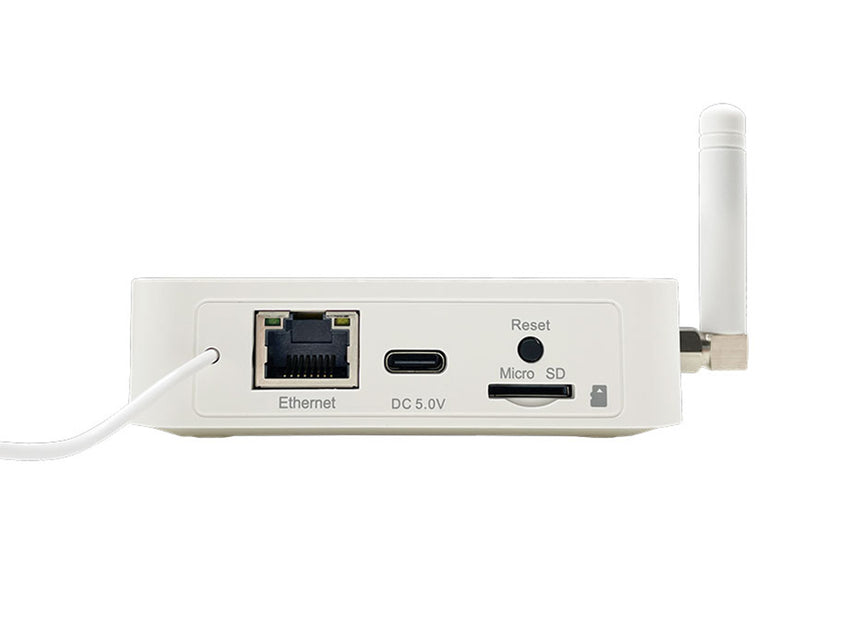

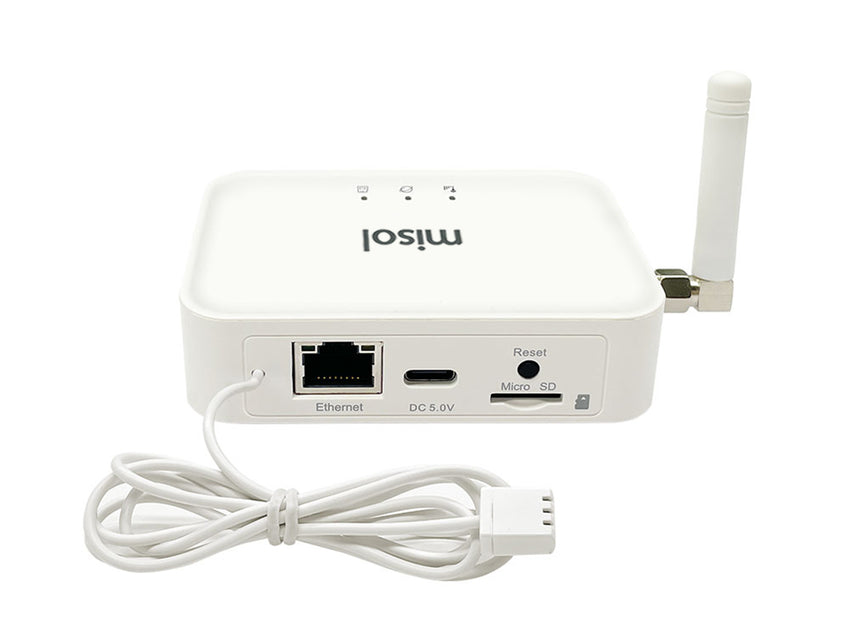

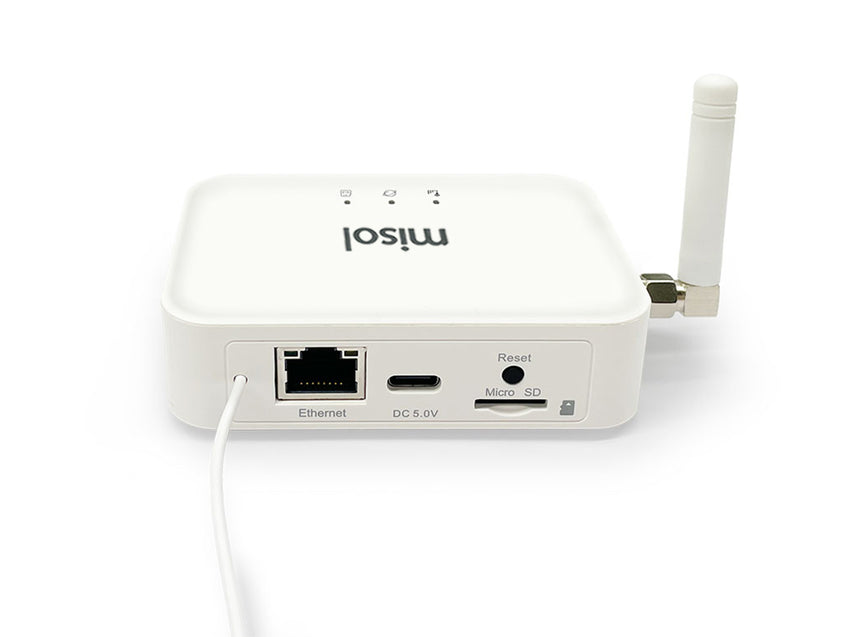

· The gateway has a Type-C power supply port, a functional indicator light, and a reset button for easy use and management. Its base has installation holes that allow it to be placed on a tabletop or mounted on a wall, offering flexible installation options.
· The gateway supports RF signal reception from enabling a wide range of functionality.(Refer to the section optional sensors.)
· The gateway supports an SD card for data storage (SD card is not included in the package), allowing for local storage and backup. It also supports local data protocols (TCP/HTTP) for building a private system, allowing customized weather monitoring and control setups.
· The gateway supports both Ethernet and 802.11 b/g/n 2.4GHz Wi-Fi for data transmission, allowing data uploads to local Web UI and cloud services.
· · Provides minute-level data updates, device displays, statistical charts, and the Weather Map for real-time global weather data access. Also offers free online data troubleshooting and an open API to support user-driven secondary development.
Specification:
|
Model |
Gateway GW3000 |
|
Dimensions |
35×24.9×62(mm) |
|
antenna dimensions (433 MHz) |
183×30×5(mm) |
|
Antenna cable length |
3000(mm) |
|
T&H Probe Dimensions |
10.5×12×5.5(mm) |
|
T&H Cable length |
850(mm) |
|
Weight |
106.1(g) |
|
Material of Plastic Casing |
ABS |
|
SD card |
Micro SD Supported (not included in the package) |
|
Key |
Reset |
|
Indicator light |
"RF", "Network", "SD Card" |
|
Temperature Metering Range |
-9.9°C to 60°C (14°F to 140°F) |
|
Temperature Metering Accuracy |
±1°C(±1.8℉) |
|
Temperature Metering Resolution |
0.1°C, or 0.1°F |
|
Humidity Metering Range |
1%RH to 99%RH |
|
Humidity Metering Accuracy |
±5%RH |
|
Humidity Metering Resolution |
1%RH |
|
Barometric Pressure range |
300 to 1100 hPa (8.85 to 32.5 inHg) |
|
Barometric Pressure Metering accuracy |
±5hPa |
|
Barometric Pressure Metering resolution |
0.1 hPa (0.01 inHg) |
|
Reading Update Interval |
About 1 minute |
|
RF Connection Frequency |
433MHz |
|
RF Wireless Range |
Over 100 meters (in open areas) |
|
WLAN |
802.11 b/g/n 2.4 GHz |
|
WLAN Range |
Over 30 meters (in open areas) |
|
Gateway Operating Temperature |
-10°C to 60°C (14°F to 140°F) |
|
Power Supply |
5V 1A USB to Type-C |
Weather Servers Supported
After the Wi-Fi configuration is successful, data can be uploaded to the following weather station servers:
1. ecowitt.net
2. wunderground.com
3. weathercloud.net
4. wow.metoffice.gov.uk
5. Customized servers
Compatible with the below sensors(sold separately):
1 unit - WS90 Sensor
1 unit - WS85 Sensor
1 unit- WS80 Sensor
1 unit - WS69 Sensor
1 unit - WS68 Sensor
1 unit - WH40 Rain Gauge
1 unit - WH57 Lightning Detector
1 unit - WH45, WH46, WH46D
1 unit- WN32 Outdoor Temperature and Humidity Sensor
1 unit- WN32P Indoor Temperature, Humidity, and Pressure Sensor
4 unit- WH55 Leak Detector
4 unit- LDS01 Laser Distance Sensor
8 units- WN31, WN30, WN36
4 units- WH41 and WH43 Air Quality Sensor(PM2.5)
8 units- WN35 Leaf Wetness Sensor
8 units - WN34L, WN34S, and WN34D
16 units - WH51, WH51L, WH52 Soil Moisture Sensor
16 units - WFC01 Water Timer, WFC02, AC1100

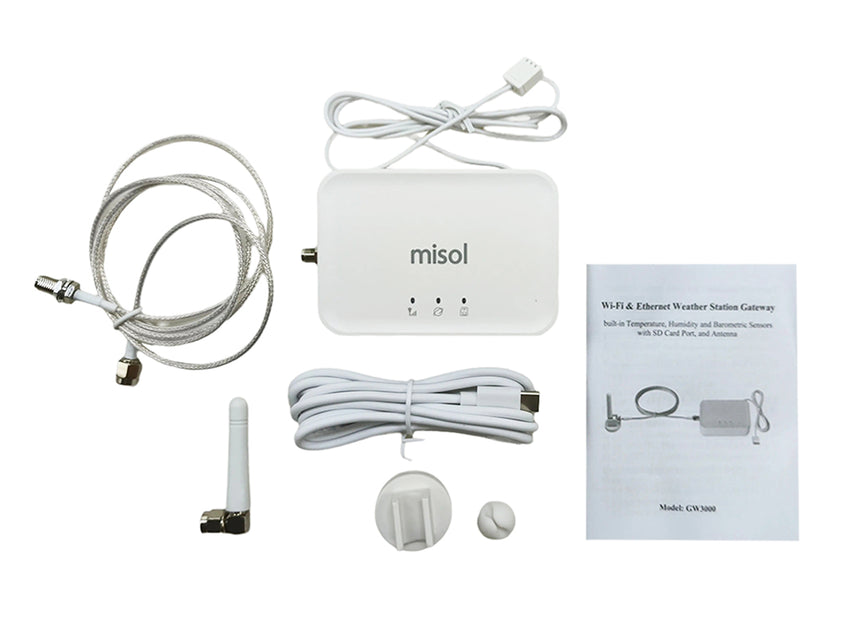

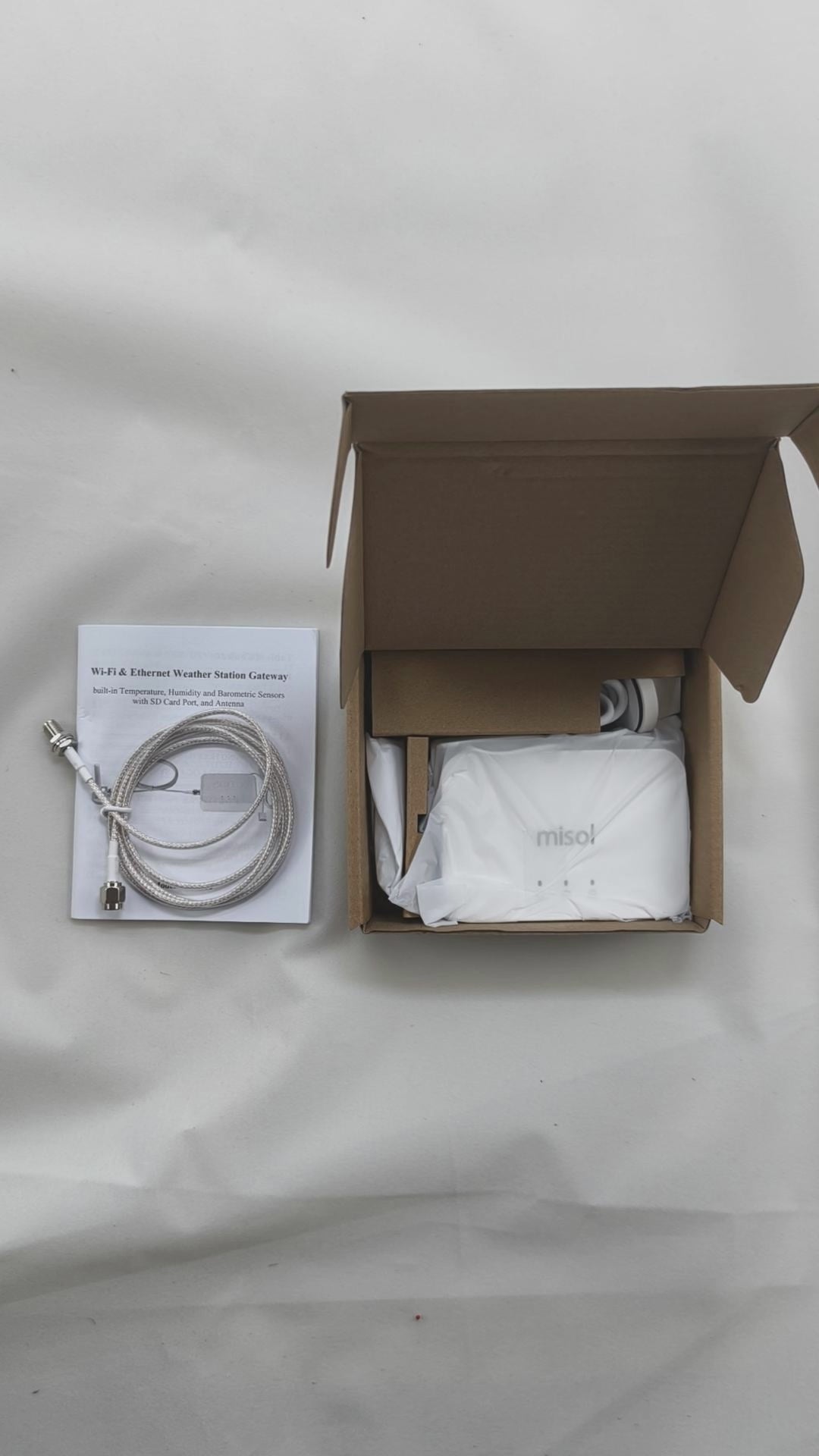

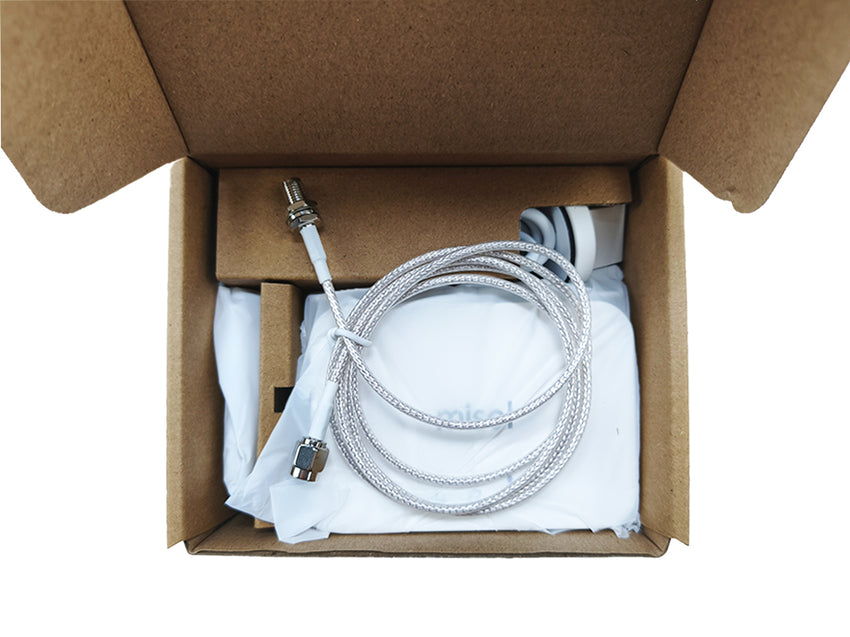

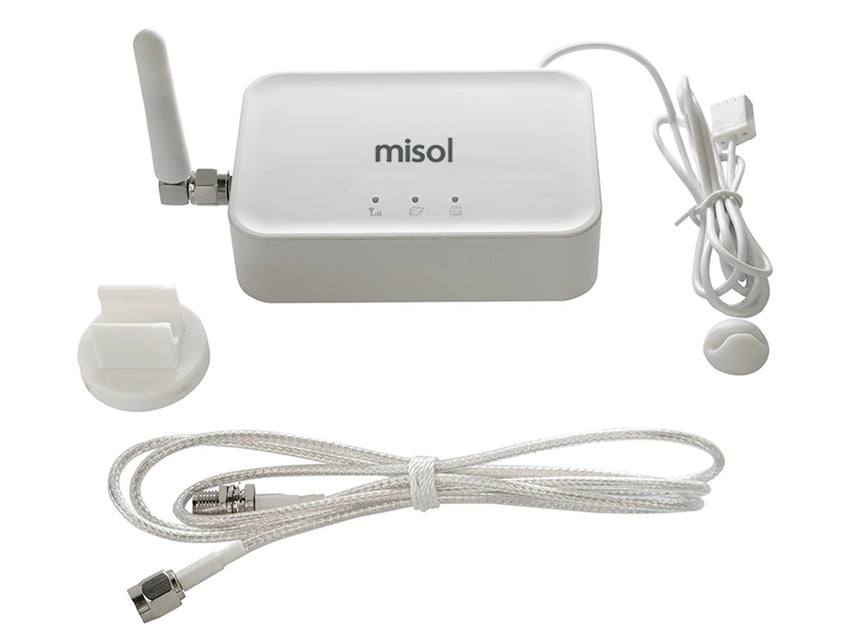

Package List
1 x Ethernet / Wi-Fi Gateway GW3000

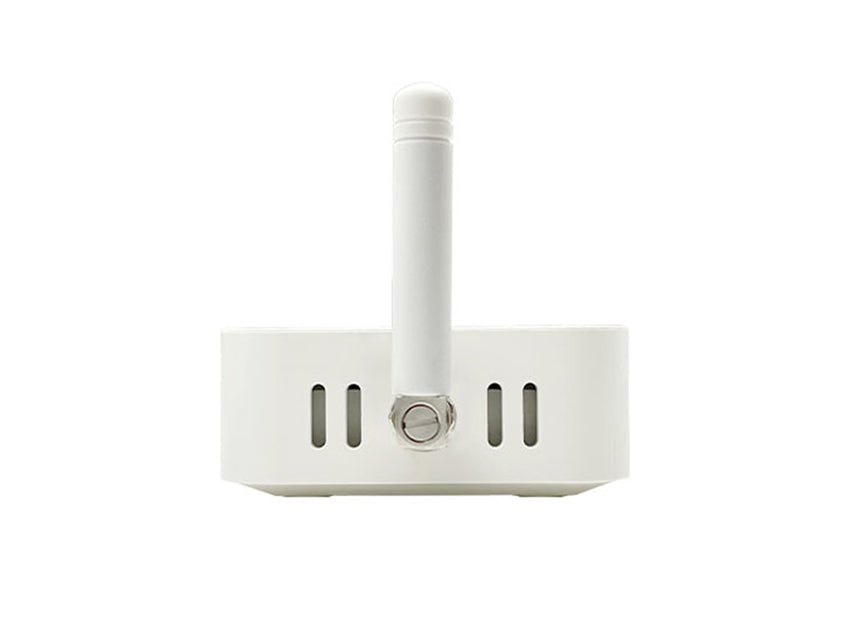

1 x Antenna
1 x USB to Type-C Cord
1 x User Manual
（Micro SD card is not included）
