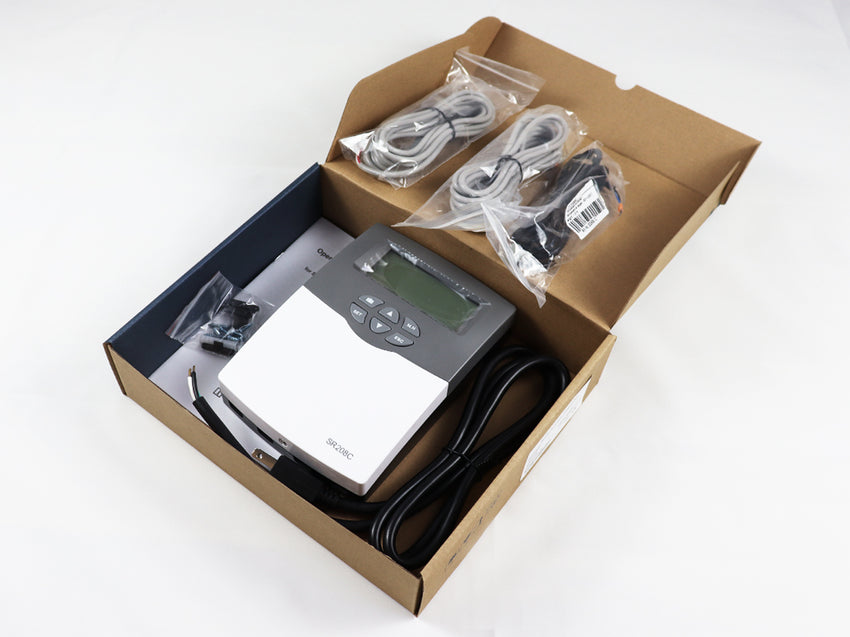

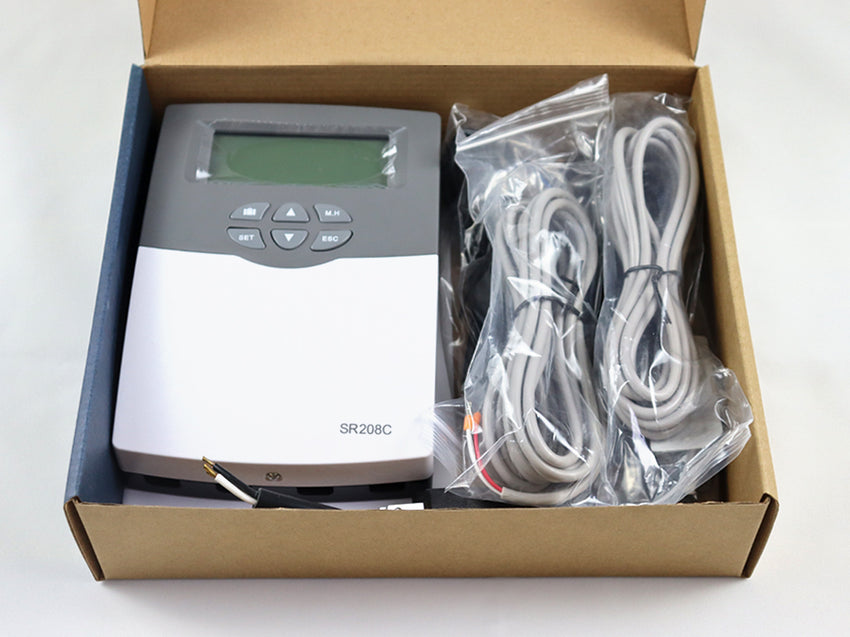

MISOL 220V controller of solar water heater, used for separated pressurized solar hot water system

Application:
It is used for the solar hot water heating system. 1 collector array * 1 storage tank * 1 pump and auxiliary heating
Main technical data

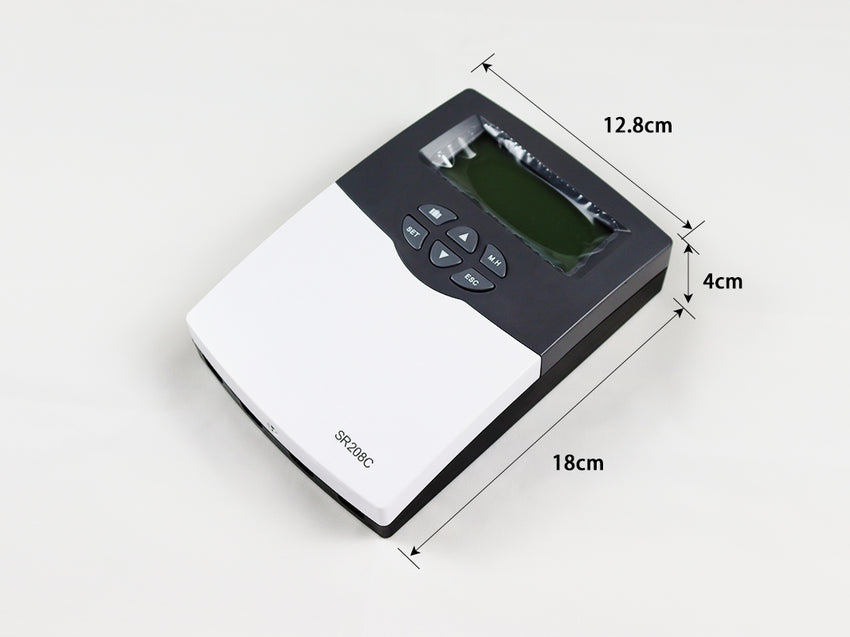

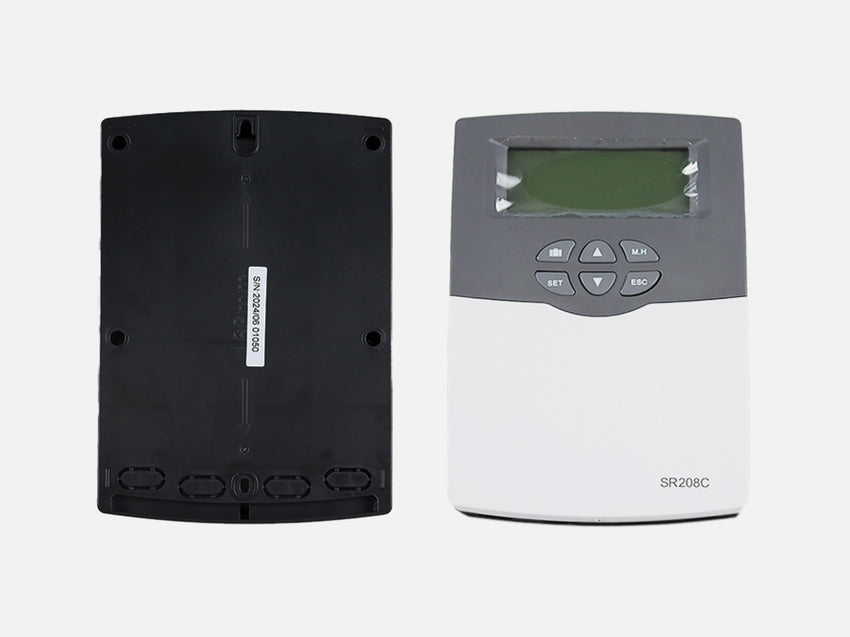

Appearance of controller: 187mm*128mm*46mm
Power supply: AC220V +/-10%.
Power consumption: less than 3 W.
Accuracy of temperature measuring: +/-2 Cel. Degree
Range of collector temperature measuring: -10-220 Cel. Degree
Range of tank temperature measuring: 0-110 Cel. Degree
Suitable power of pump: 3, less than 600W.

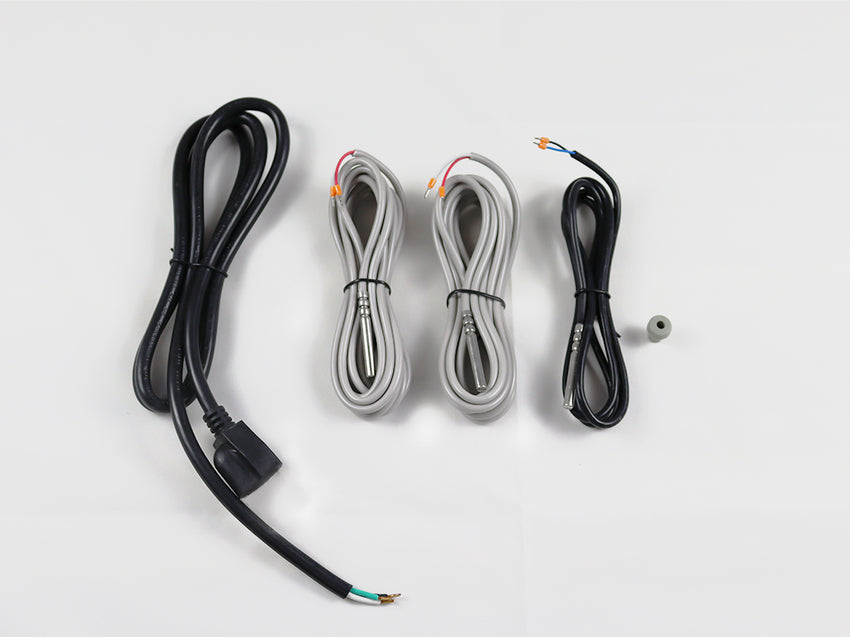

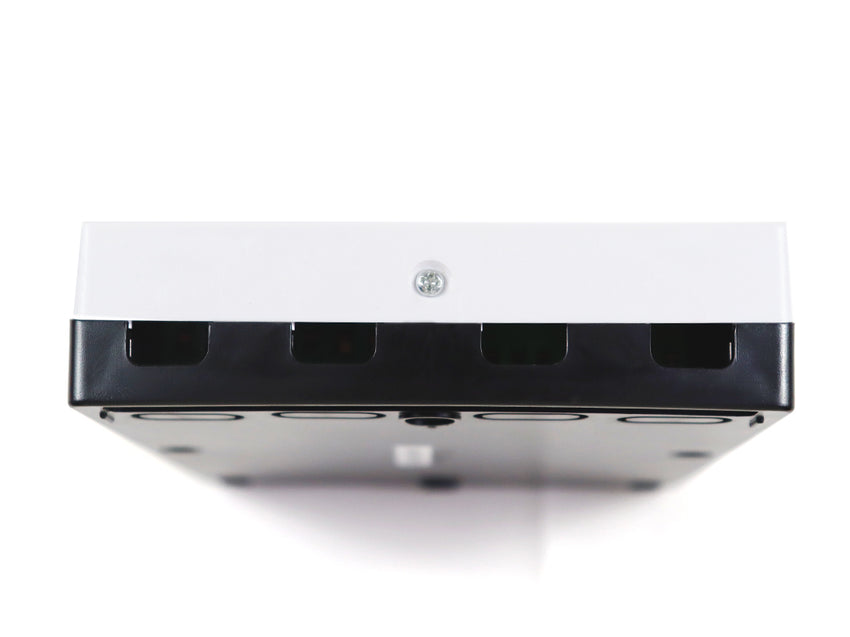

Inputs: 1* Pt1000 sensor (less than 500 Cel. Degree) for collector (silicon cable less than280 Cel. degree),
2 x NTC10K, B3950 sensor (less than 135 Cel. Degree) for tank, (PVC cable less than 105 Cel. degree),
Outputs: 1 relays, for circulation pumps
1 relay for electrical heater.
Ambient temperature: -10-50 Cel. Degree

Main functions
1. Main menu DT O & DT F Temperature difference function.
2. Main menu-THET timing heating.
3.TEMP temperature hand menu
4. EM Emergency collector temperature (emergency switch-off temperature of collector).
5. CMX Maximum limited collector temperature (collector cooling function).
6. CMN low temperature protection of collector.
7.CFR frost protection of collector.
8. SMX Maximum temperature of tank.
9.REC Tank re-cooling function
10.Celsius and Fahrenheit temperature transferring.
11.HND Manual mode
12.PASS Password setting.
13. Load recovery to factory setting.
14.Manual heating
15. Temperature query function.
16. Protection function.
18.Anti-dry heating protection.
19. Screen protection.

Manual in English.
