No
|
Description
|
No
|
Description
|
|
1
|
Red LED Indicator
(RF transmission)
|
3
|

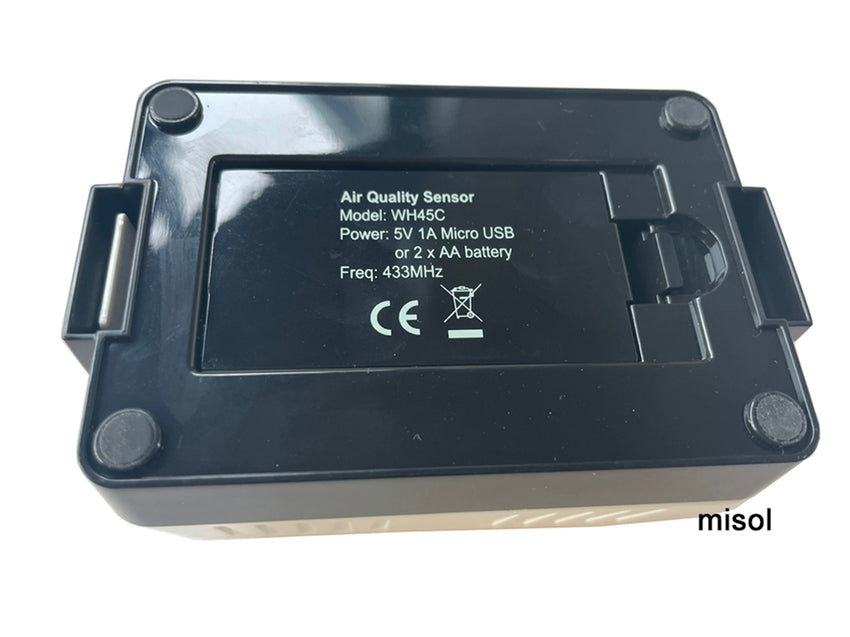

Battery Compartment
Cover
|
|
2
|

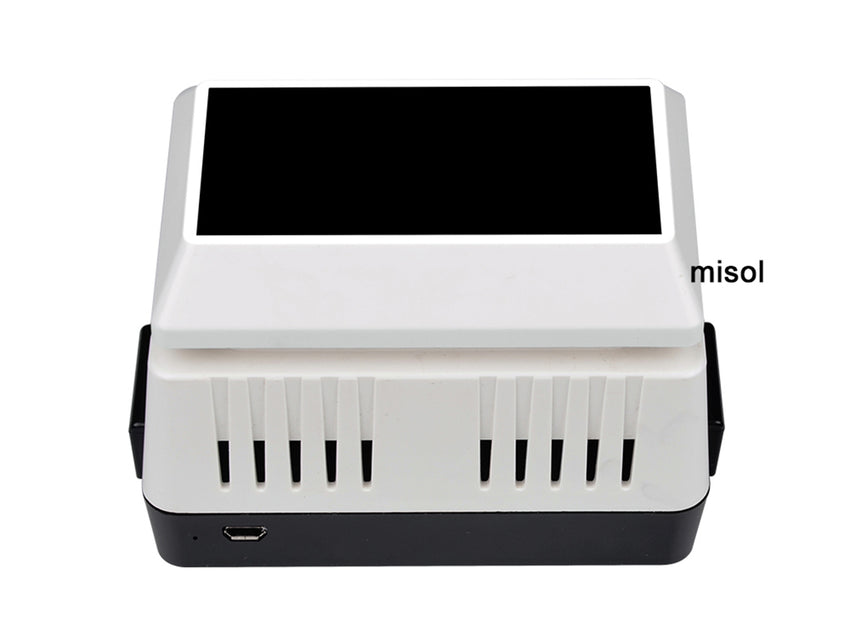

AC Adapter USB
Power Port
|
4
|
Battery Compartment
|
Functions:
- Measures indoor PM2.5, PM10, CO2 concentration, Temperature and Humidity every 60 seconds.
- for indoor use only.
- CO2 value calibration function available on the device.
- PM2.5 value Calibration function available when paired with GW1000/GW1100/HP2551/HP3500/HP3501
- wireless range, up to 300 feet (100 meters) in open areas
When paired with a GW1000/GW1100 Wi-Fi Gateway:
-Monitor live sensor data on the Live Data page of the WS View app (requires the gateway and your phone using the same Wi-Fi network)
-Displays current PM2.5 / PM10 concentration/AQI and 24H AQI and air quality level index on the Live Data page of the WS View app
-Displays current CO2 concentration and 24H average CO2 concentration on the Live Data page of the WS View app.
-Displays temperature and humidity data where the sensor located
-Calibration function available for PM2.5 value
When paired with a Weather Station Console (HP2551/HP3500/HP3501):
-The PM2.5, PM10 and CO2 data automatically scrolls displaying on the screen every 5 seconds
-Calibration function available for PM2.5 value
When uploaded to Ecowitt Weather Server:
-View current sensor data & history records & graph on the website
-Set and receive email alerts from the server
-Remote monitoring with smart phone, laptop, or computer by visiting the website
When the Wi-Fi configuration is done, you can view the live data of your sensor on the WS View application.
Remark:The WH45 sensor data can be only viewed on the Live Data interface since it doesn’t support uploads to weather underground.
Specifications:
1) wireless transmission distance(in open air): Max. 100meters,(if there’s obstacle in between, or signal interference, the distance will be shorten.
2) Frequency: 433 MHz
3) Sensor reporting interval: 1 minute
|
Measurement
|
Range
|
Accuracy
|
Resolution
|
|
PM 2.5
|
0~999ug/m3
|
>100ug/m3, ±15%
<100ug/m3, ±15ug/m3
|
1ug/m3
|
|
PM 10
|
0~999ug/m3
|
>100ug/m3, ±25%
<100ug/m3, ±25ug/m3
|
1ug/m3
|
|
CO2
|
0- 40000ppm
|
400-10000ppm
±(30ppm ± 3%)
|
1ppm
|
|
Temperature
|
-40°C – 60°C (-40°F - 140°F)
|
± 1°C, or ± 2°F
|
0.1°C, or 0.1°F
|
|
Humidity
|
0%~99%
|
± 5%
|
1%
|
Power Consumption:
- Particle Detection Sensor: AC power (5V 1A) - Not included
- 2 x AA 1.5V Batteries for back up - Not included
