Description:
![]()
Features:
1. It can send data to the web server (wunderground, ecowitt) by 4G so that users can run remote monitoring of weather condition, through visit this web.
2. It can connect to PC via USB cable to view the history data. (PC software is available).
3. It can send the SMS (message) to your mobile phone, about the weather status (interval: can be adjusted). And it can send the alarming message your mobile phone.
4. It support mirco sim card or Nano sim card. it supports the below 4G frequency band:
Europe/Australia:
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B40
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900
5. The data will be saved as CSV format into the TF card(micro SD card).
(there’s a 16GB card in the package)
|

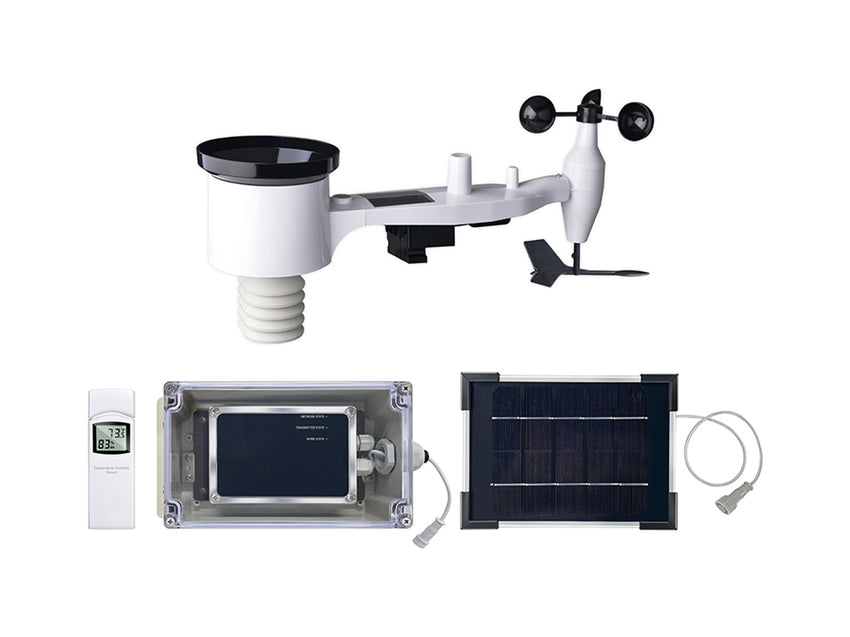

1
|
Wind Speed cups
|
7
|
Antenna
|
|
2
|
Wind Vane
|
8
|
U-Bolts
|
|
3
|
Thermo- and hygro sensors
|
9
|
Battery compartment door
|
|
4
|
Rain collector
|
10
|
Reset button
|
|
5
|
Bubble level
|
11
|
LED (red) to indicate data transmission
|
|
6
|
Solar panel
|
12
|
Light sensor and UV sensor
|
PC software:
![]()
SMS message to mobile phone for the current weather status:
(SMS sending frequency will be adjusted.)
Picture as below:
Specification:
Outdoor data
Transmission distance: Max. 100meter (330 feet)
(tested in open field, no obstacle in between, no interfere in between)
Frequency: 433 MHz
Temperature range : -40～+60°C
Accuracy : +/- 1˚C
Resolution : 0.1˚C
(remark: in the cold weather, battery may stop working. )
Humidity range :10%～99%
Accuracy : +/- 5%
Rain volume :0 - 9999 mm
Resolution :0.3mm (if rain volume < 1000mm), 1mm (if rain volume > 1000mm)
Accuracy : +/- 10%
Wind speed : 0-50m/s (0~100mph)
Accuracy : +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed > 5m/s)
Wind direction : 0 to 359 degree
Light : 0-300k Lux
Accuracy : +/-15%
Measuring interval outdoor sensor : 16 sec
Water proof lever : IPX3
Indoor data
Temperature range : -40～+60°C
Accuracy : +/- 1˚C
Resolution : 0.1˚C
(remark: in the cold weather, battery may stop working. )
Humidity : 10%～99%
Resolution : 1%
Accuracy : +/- 5%
air pressure : 300-1100hPa (8.85-32.5inHg)
Accuracy : +/-3hpa (@700-1100hpa)
Resolution : 0.1hPa (0.01inHg)
Measuring interval indoor sensor : 61 sec
Power requirement:
Base station: 18650 lithium rechargeable battery 1 unit (not included in the package)
USB charger (included in the package)
Solar panel (Voc:6.2v, Isc:500Ma, size: 195*138mm)
Indoor sensor: 2XAA 1.5v non-rechargeable batteries (not included in the package)
outdoor sensor: 2XAA 1.5v non-rechargeable batteries (not included in the package)
Remark:
1) . in the cold weather, Alkaline battery may stop working. The performance of Lithium battery is better.
2) Since the battery is not allowed for the air freight, the batteries are not included in the package.
