Description:

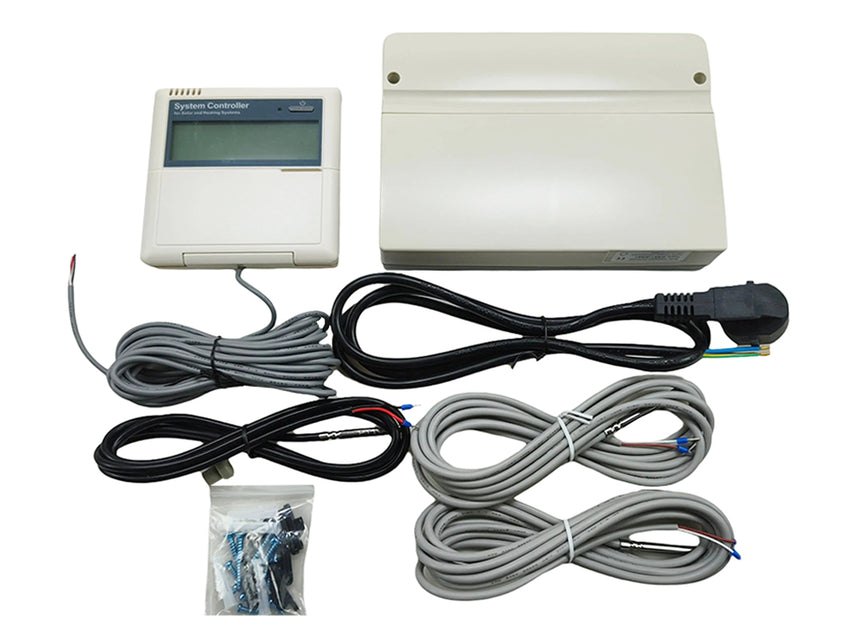

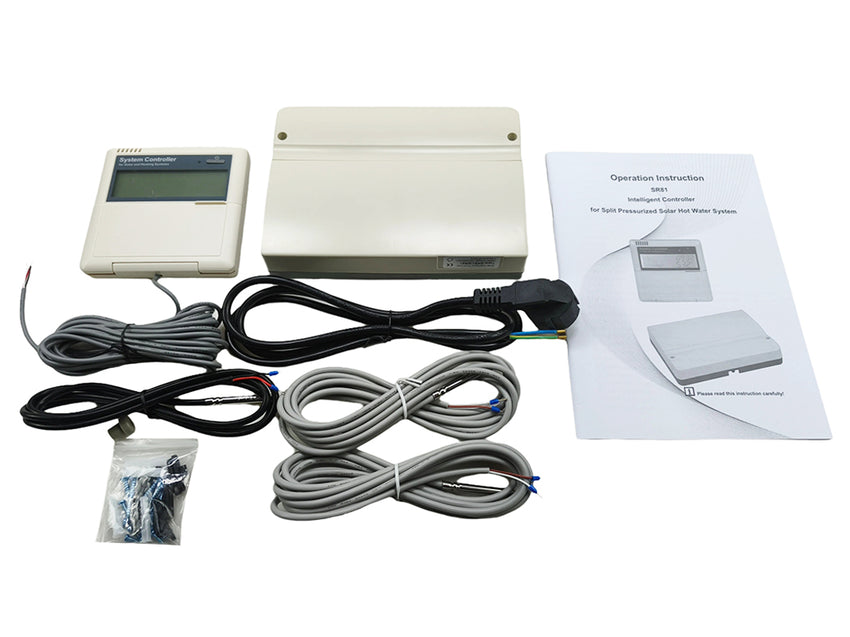

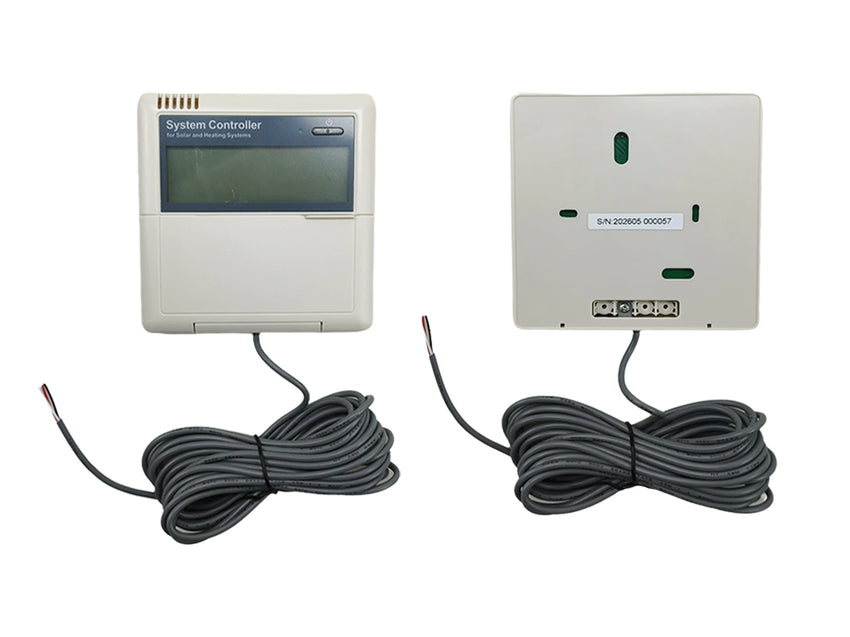

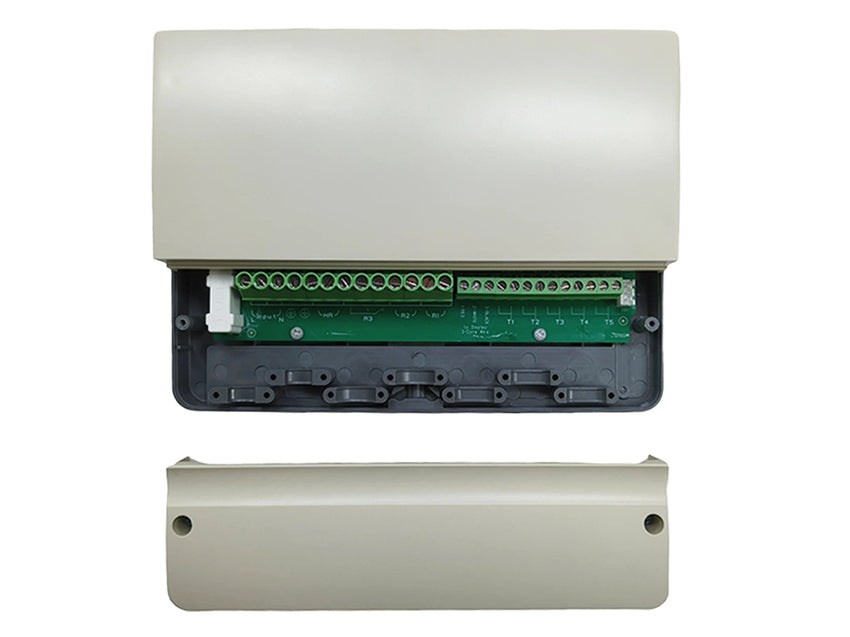

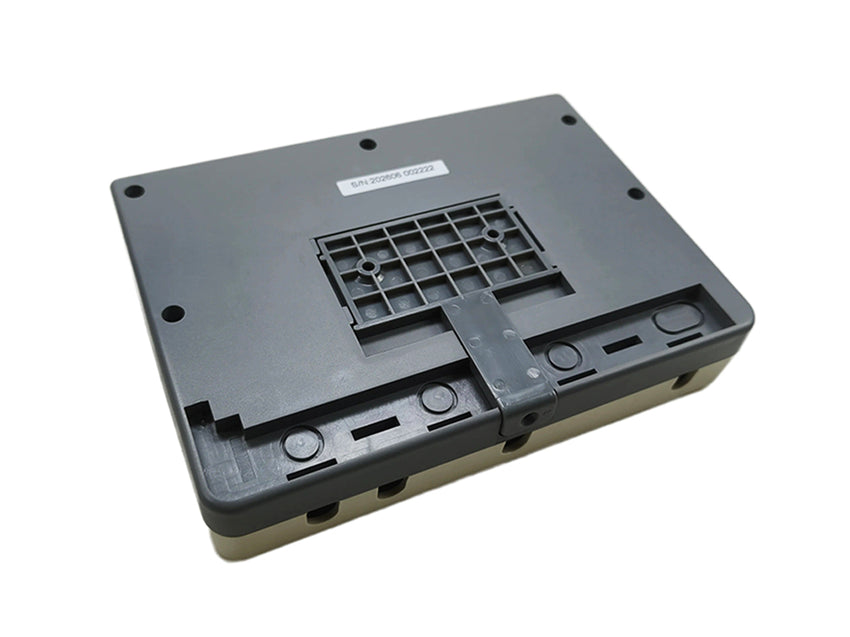

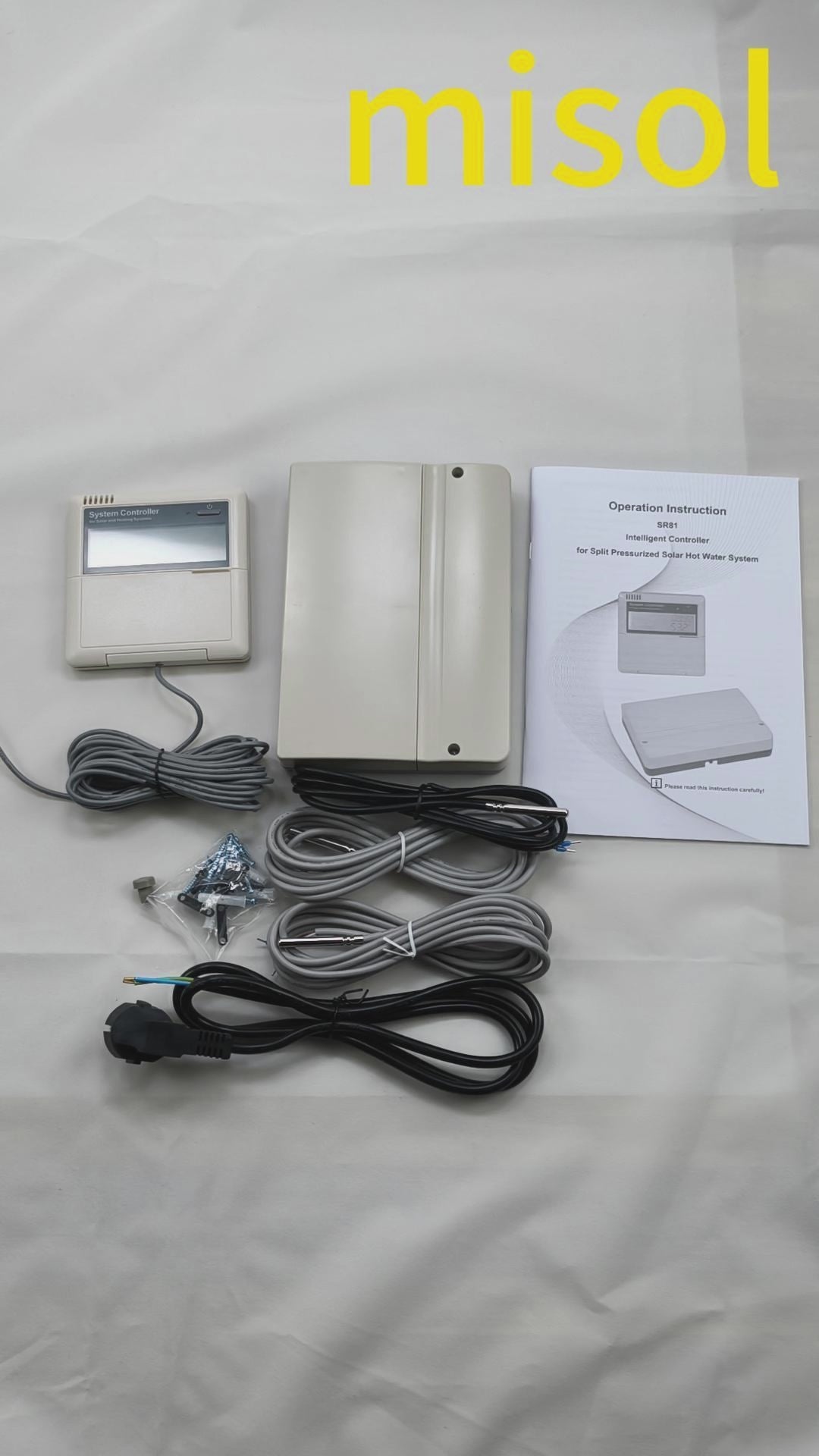

This listing includes: 1 unit of controller for pressurized solar water heating system, 220V.
Application:
It can be used for the solar hot water heating system: 1 collector array – 1 storage tank – 1 pump and auxiliary heating.
Function Introduction:
The solar circuit pump (R1) is switched on as soon as the switch-on temperature difference (△T on) between the collector array (T1) and the storage tank (T2) is reached.
If the temperature difference between the collector array (T1) and storage tank (T2) drops below the switch-off temperature difference (△T off), , or the temperature of storage tank (T3) reaches the preset maximum storage temperature, then the solar circuit pump (R1) is switched off.
Back-up heating by auxiliary boiler: within the preset time section of back-up heating, if the temperature T3 is below the switch-on temperature, then the circulation pump ( H1) of back-up heating is triggered, when T3 is heated to the switch-off temperature, circulation pump H1 of back-up heating is ceased.
Main technical data:

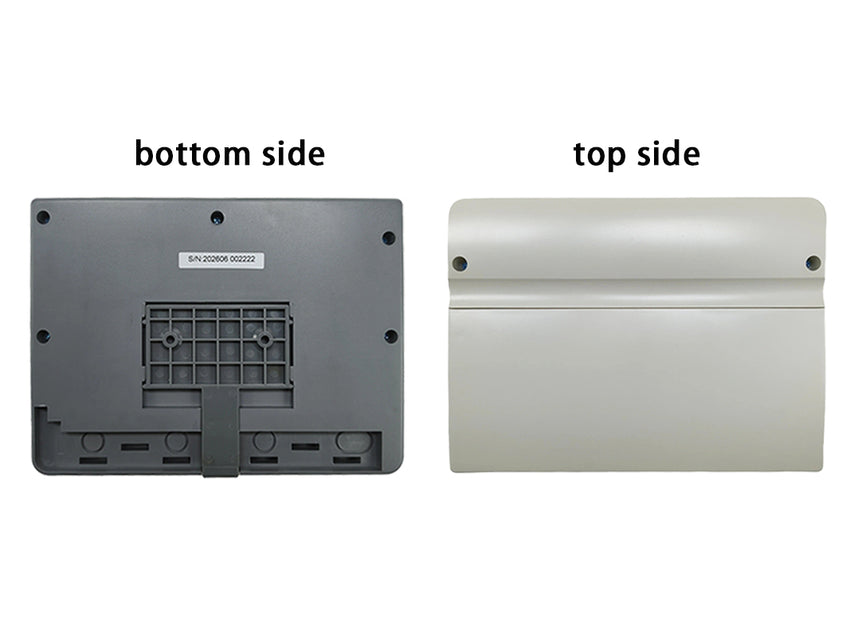

- Appearance of controller: 120mm×120mm×18mm

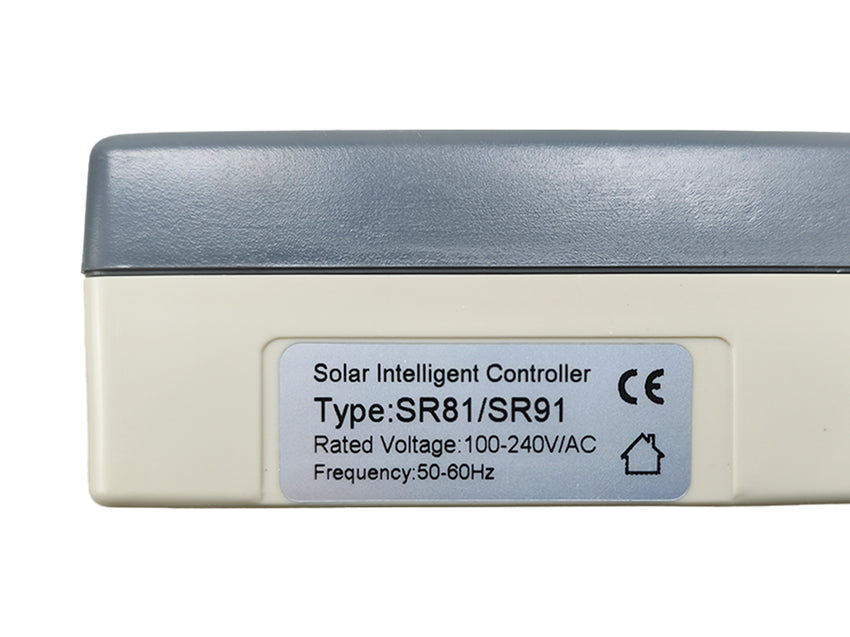

- Power supply: AC100V-240V
- Power consumption: ＜ 2W
- Accuracy of temperature measuring: ± 2 Cel. degree
- Range of collector temperature measuring: -10～220Cel. degree
- Range of tank temperature measuring: 0～110 Cel. degree
- Suitable power of pump: 3 pcs，≤300W
- Suitable power of electrical heater: 1 pcs, ≤ 1500W

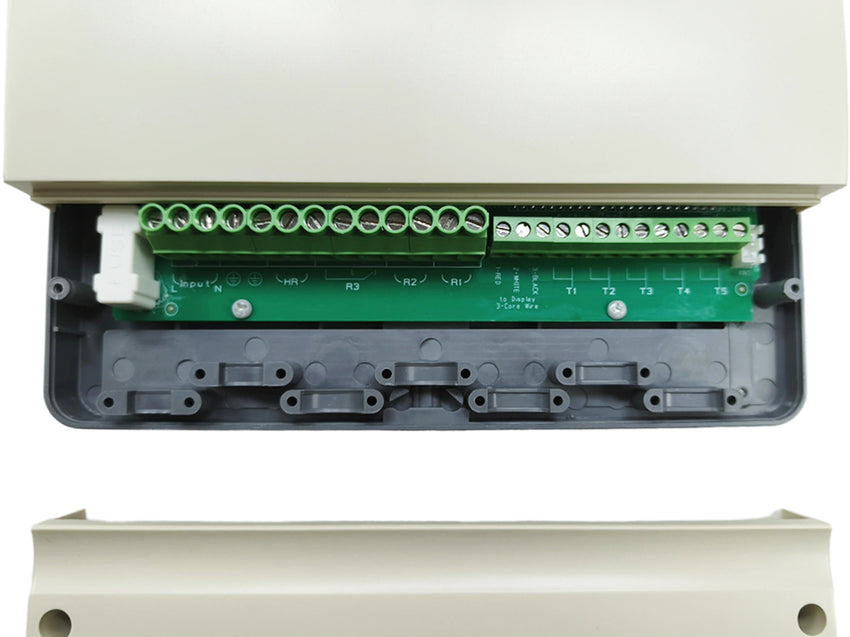

- Inputs:
l 1 x Pt1000 sensor (≤ 500 Cel. degree) for solar collector (silicon cable≤280Cel. degree),
l 2 x NTC10K, B3950 sensor (≤ 135 Cel. degree) for tank, (PVC cable ≤105 Cel. degree),
- Outputs: 3 relays, for circulation pumps or 3-way electromagnetic valve, 1 relay for electrical heater
- Ambient temperature: -10～50 Cel. degree
- Water proof: IP40

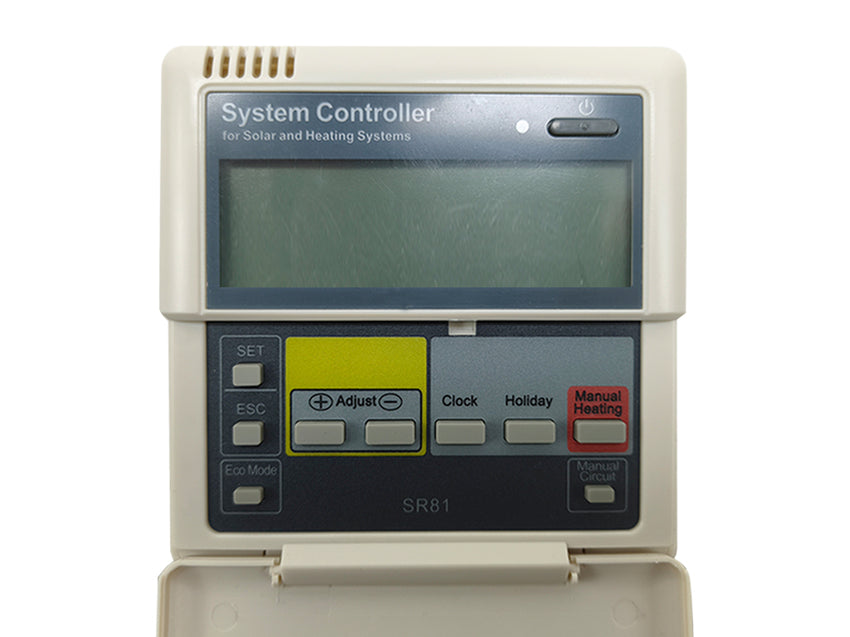

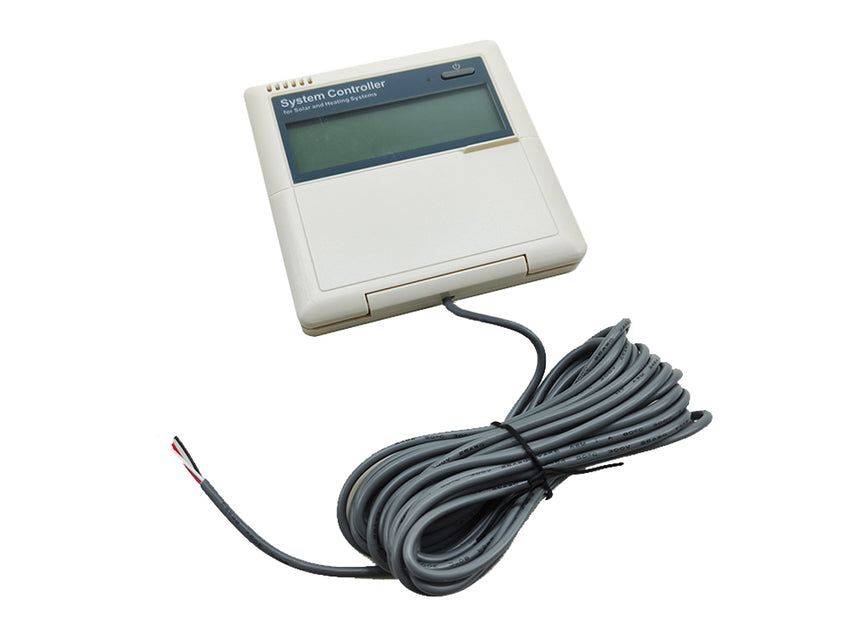

Display illustration:
