Description:
Features

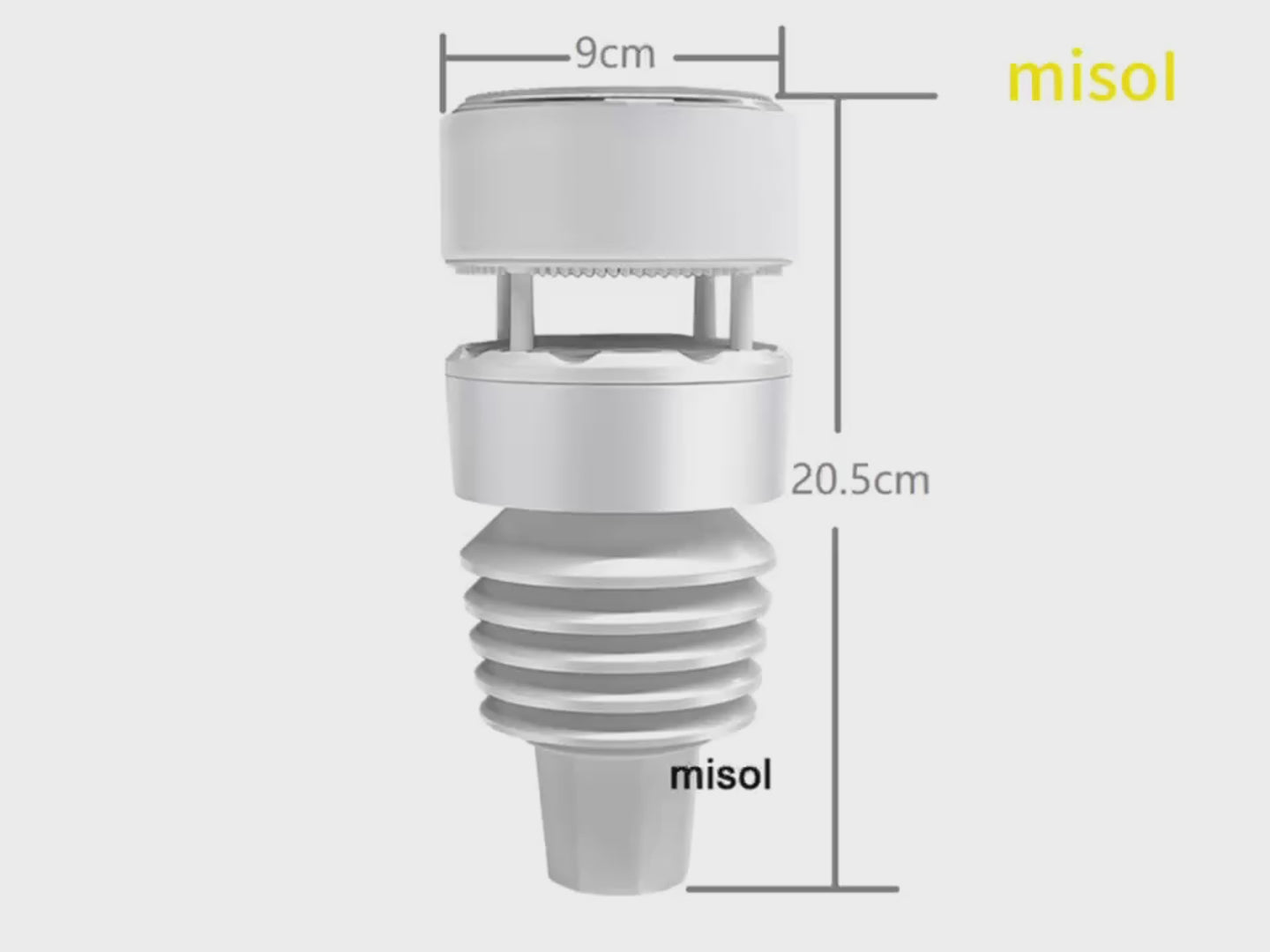

- This listing includes: 1 unit of weather station.
- It will measure: temperature, humidity, rain volume, wind speed, wind direction, light, air pressure.
- Ultrasonic wind speed, wind direction
- Hapitac rain sensor
- With RS485 port (Modbus RTU)
- With cable: 4 wires cable, length: 10 meter

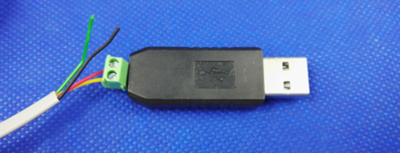

- Including 1 unit of Adaptor (RS485 to USB) (convenient to connect to computer)
- No display for it
- Communication protocol will be provided.
Application: it is suitable for the customers to collect the data from the weather station through the cable by their own designed software.
Attention: Before order, please ensure you know how to develop the software to collect the data. What we can support only is to provide the communication protocol to you.
|

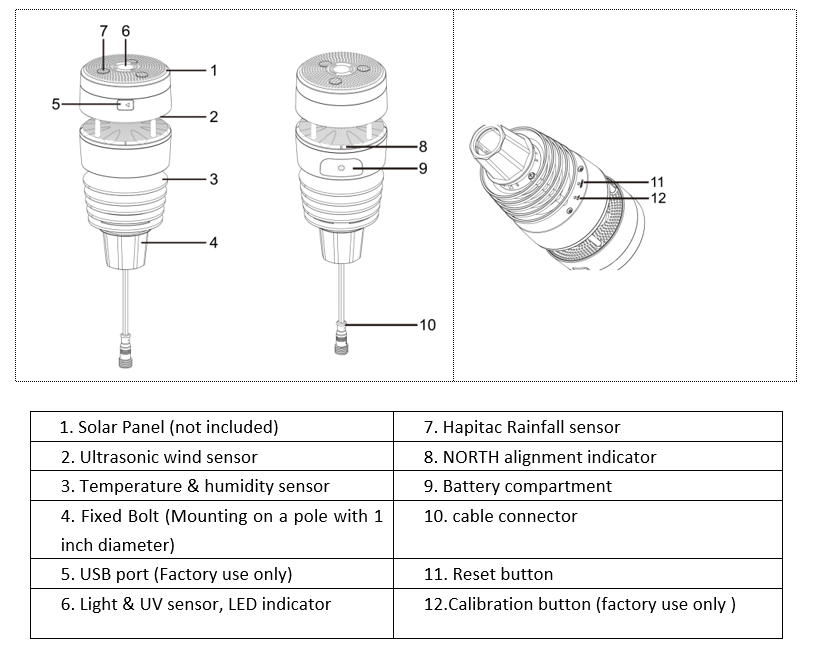

1. Solar Panel (not included) |
7. Hapitac Rainfall sensor |
|
2. Ultrasonic wind sensor |
8. NORTH alignment indicator |
|
3. Temperature & humidity sensor |
9. Battery compartment |
|
4. Fixed Bolt (Mounting on a pole with 1 inch diameter) |
10. cable connector |
|
5. USB port (Factory use only) |
11. Reset button |
|
6. Light & UV sensor, LED indicator |
12.Calibration button (factory use only ) |

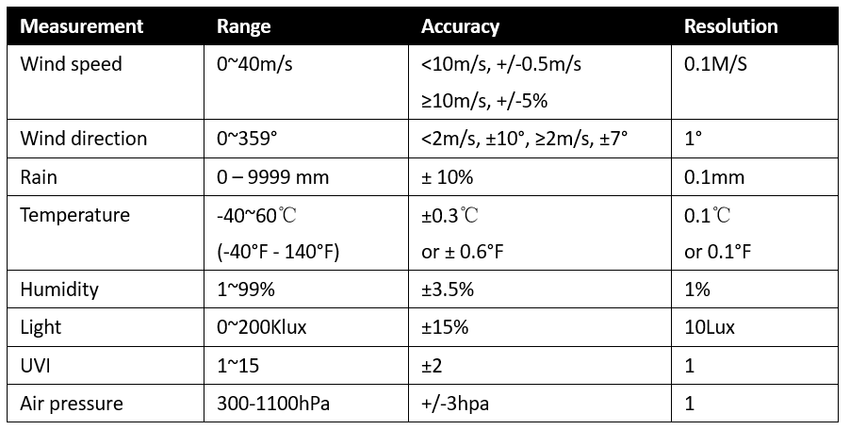

Specification
|
Measurement |
Range |
Accuracy |
Resolution |
|
Wind speed |
0~40m/s |
<10m/s, +/-0.5m/s ≥10m/s, +/-5% |
0.1M/S |
|
Wind direction |
0~359° |
<2m/s, ±10°, ≥2m/s, ±7° |
1° |
|
Rain |
0 – 9999 mm |
± 10% |
0.1mm |
|
Temperature |
-40~60℃ (-40°F - 140°F) |
±0.3℃ or ± 0.6°F |
0.1℃ or 0.1°F |
|
Humidity |
1~99% |
±3.5% |
1% |
|
Light |
0~200Klux |
±15% |
10Lux |
|
UVI |
1~15 |
±2 |
1 |
|
Air pressure |
300-1100hPa |
+/-3hpa |
1 |
Connection (4 wires cable)：
Black wire： GND
Red wire： USB A (D+)
Yellow wire： USB B (D-)
Green wire： VDD (5V)
