MISOL CONTROLLER KIT of SOLAR WATER HEATER, 3 sensors FOR SPLIT SYSTEM 12V
  • Model: SWH-SRC-868-C
  • Shipping Weight: 1.4kg
  • Units in Stock: 96
  • Manufactured by: MISOL

$68.19
Sale: $54.55
Save: 20% off

Add to Cart:
Payments by PayPal
Details:

Model: SWH-SRC-868-C

Manual in English

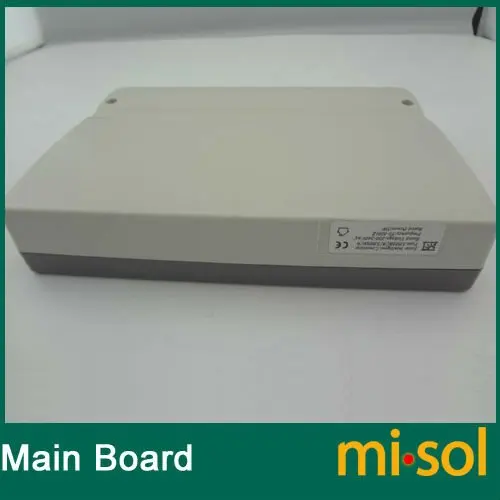

This listing includes: 1 unit of controller for pressurized solar water heating system, 12V.



Application:

It can be used for the solar hot water heating system: 1 collector array – 1 storage tank – 1 pump and auxiliary heating.



SRC-81-C-1

QQ20170329144054

Function Introduction:

The solar circuit pump (R1) is switched on as soon as the switch-on temperature difference (△T on) between the collector array (T1) and the storage tank (T2) is reached.

If the temperature difference between the collector array (T1) and storage tank (T2) drops below the switch-off temperature difference (△T off), , or the temperature of storage tank (T3) reaches the preset maximum storage temperature, then the solar circuit pump (R1) is switched off.

Back-up heating by auxiliary boiler: within the preset time section of back-up heating, if the temperature T3 is below the switch-on temperature, then the circulation pump ( H1) of back-up heating is triggered, when T3 is heated to the switch-off temperature, circulation pump H1 of back-up heating is ceased.



Main technical data:

-       Controller dimension: 218mm×165mm×55mm

-       Display dimension:   120mm x 120mm x 18mm

-       Power  supply:        DC 12V

-       Power  consumption:   < 3W

-       Accuracy of temperature measuring:  ± 2 Cel. degree

-       Range  of  collector  temperature  measuring:   -10~220Cel. degree

-       Range  of  tank  temperature  measuring:   0~110 Cel. degree

-       Suitable  power  of  pump:   3 pcs,3A

-       Suitable power of electrical heater: 1 pcs, Electromagnetic relays, designed for on/off control of back-up heating device, Max. Current: 15A



-       Inputs:

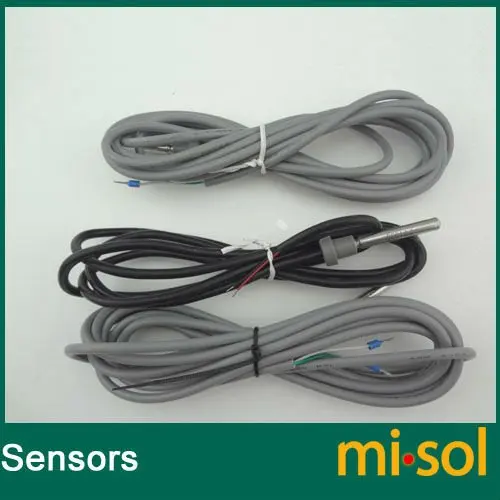

l  1 x Pt1000 sensor  (≤ 500 Cel. degree)  for solar  collector  (silicon  cable≤280Cel. degree),

l  2  x  NTC10K,  B3950  sensor  (≤  135 Cel. degree)  for  tank,  (PVC  cable  ≤105 Cel. degree),

-       Outputs:  3 relays, for circulation pumps or 3-way electromagnetic valve,  1  relay  for  electrical  heater

-       Ambient  temperature:   -10~50  Cel. degree

-       Water proof: IP40



Display illustration:



SRC-81-C-2

3 sensors 110V 8
3 sensors 110V 5

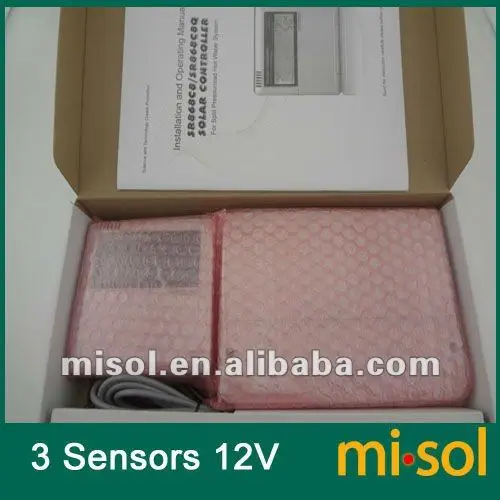

3 SENSORS 12V
